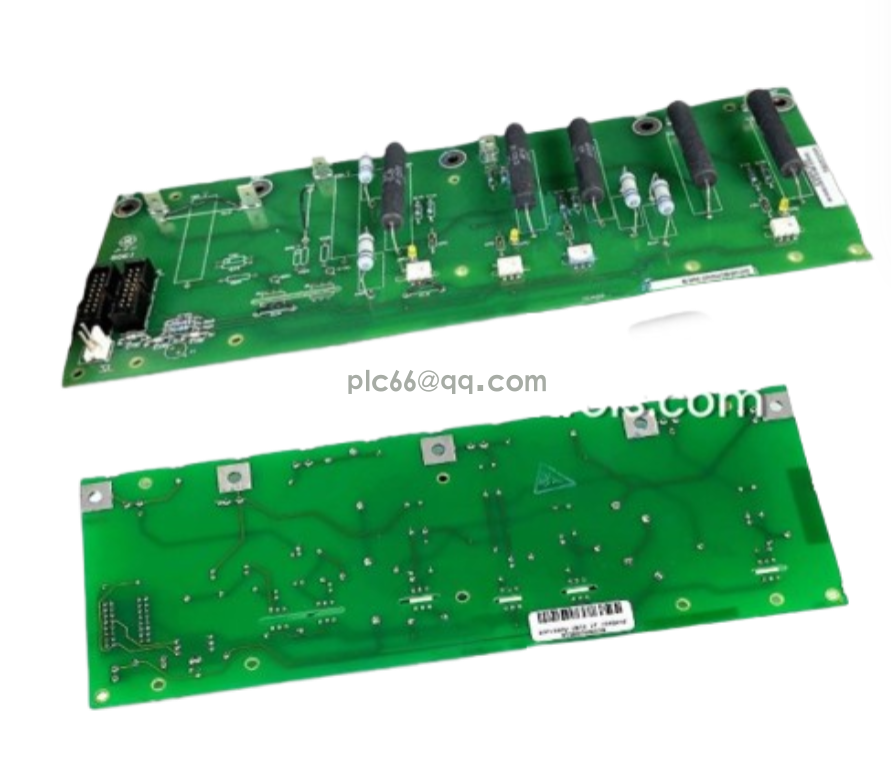

The DS200CVMAG3 Fuse/Cap Voltage Monitor Assembly is a vital electronic board produced by General Electric (GE) for use in their Mark V Series of turbine control systems. Its core purpose is to monitor voltage levels associated with fuses and capacitors, particularly CapFuses, to ensure the safe and reliable operation of the entire system.

DS200CVMAG3 Fuse/Cap Voltage Monitor Assembly (English Version)

The DS200CVMAG3 Fuse/Cap Voltage Monitor Assembly is an electronic circuit board manufactured by General Electric (GE). It is a key component within the Mark V Series of GE Drive Control Systems, which are widely used for the sophisticated control and protection of large industrial gas and steam turbines.

Its primary function is to continuously and accurately monitor voltage levels across Capacitor-based Fuses (CapFuses) and other relevant circuit points. CapFuses are essential safety devices that utilize capacitors to rapidly interrupt a circuit when overvoltage or overcurrent conditions occur. The DS200CVMAG3 ensures that these critical components operate within their specified safe limits, thus preventing damage to the system and ensuring continuous, reliable operation of the turbine.

While sharing the fundamental goal of voltage monitoring with the DS200CVMAG1 series, the "3" in "CVMAG3" signifies a distinct design generation or significant functional evolution. This generally implies:

• Design Evolution: The CVMAG3 is likely a more advanced or re-engineered version, potentially incorporating newer technologies, improved measurement accuracy, enhanced diagnostic capabilities, or a different set of inputs/outputs compared to the earlier CVMAG1 series.
• Specific Application Focus: It might be tailored for specific models or configurations of Mark V turbines that have unique voltage monitoring requirements or utilize different types of CapFuses.
• Component Upgrades: Internal components such as microcontrollers, analog-to-digital converters, or sensing circuitry may be updated to more efficient, robust, or higher-performing versions.

Key Features and Characteristics:

• Function: Precisely monitors voltage across CapFuses to detect and react to overvoltage/overcurrent conditions.
• Application: Integral to GE Mark V Turbine Control Systems.
• Connectors: Typically includes multiple connectors (e.g., two 16-pin connectors and one 2-pin connector) for ribbon cables, which transmit control signals to and from other boards within the drive system.
• Test Points: Features several onboard test points (e.g., 6 test points) to facilitate diagnostic procedures and circuit testing.
• Relays: Often includes multiple relays (e.g., 5 total relays) for providing control outputs or alarm signals.
• Physical Dimensions: Known to be approximately 11 by 4 inches.
• Static Sensitivity: Like many sensitive electronic boards, it requires careful handling to prevent damage from electrostatic discharge (ESD).
• Revisions: Similar to the CVMAG1 series, the CVMAG3 also has its own specific revisions (e.g., DS200CVMAG3A, DS200CVMAG3AEB), which denote minor hardware, firmware, or layout changes within the CVMAG3 family.

Important Note for Replacement/Repair:

When working with GE Mark V series boards, it is critically important to match the exact full part number and revision (e.g., DS200CVMAG3AEB). Due to the complex and critical nature of these systems, using an incorrect revision, even if seemingly minor, could lead to compatibility issues, unexpected system behavior, or instability in a critical industrial application. Always consult official GE documentation or an authorized GE service provider for the most accurate information on compatibility and differences between revisions.
