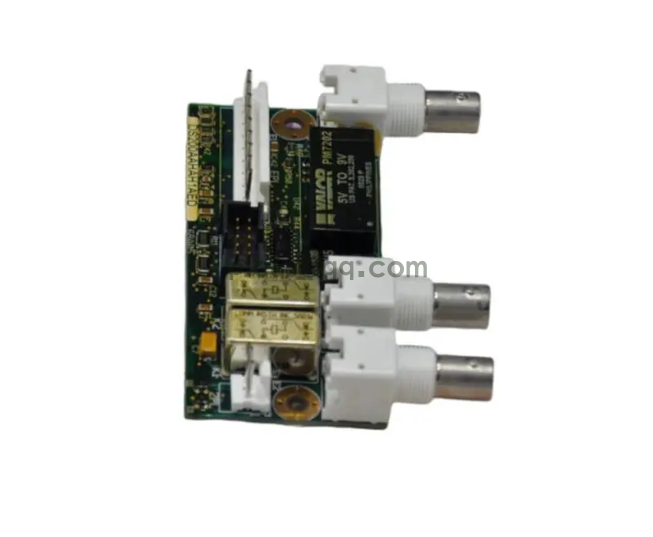

The DS200AAHAG1AD ARCNET Connection Board is a specialized printed circuit board (PCB) developed by General Electric (GE) for their Mark V Turbine Control System Series. It plays a vital role in enabling communication within these complex industrial control systems.

Here's a detailed breakdown:

Product Description

The DS200AAHAG1AD, often abbreviated as AAHA, is an ARCNET (Attached Resource Computer NETwork) Connection Board. Its primary function is to facilitate network communication within GE's Mark V Speedtronic Turbine Control System. This board acts as an interface for ARCNET cables, connecting various components such as the I/O (Input/Output) cores, the main control engine, and the Human-Machine Interface (HMI) display. It ensures reliable and predictable data exchange crucial for the real-time control of gas, steam, and wind turbines. The board is designed for easy installation and is known for its robust construction, typical of industrial control components.

Product Parameters

• Part Number: DS200AAHAG1AD (with "AAHA" as the functional abbreviation)
• Manufacturer: General Electric (GE)
• Series: GE Mark V Speedtronic Turbine Control System (including LM versions)
• Product Type: ARCNET Connection Board
• Function: Provides ARCNET network connectivity for the Mark V system, linking I/O cores, control engine, and HMI.
• Connectivity:
• Typically features multiple BNC connectors for ARCNET communication (e.g., ARCBNC-A, ARCBNC-B).
• May include other connectors like APL (ARCNET Communications Link) for communication with boards containing ARCNET drivers (e.g., PANA board).
• Some ports (e.g., EBNC, EPL) may be present but are often unused.
• Technology: Utilizes ARCNET, a token-passing network protocol known for its deterministic behavior and suitability for real-time applications.
• Data Rate: While ARCNET can operate at speeds like 2.5 Mbps or 10 Mbps, the specific implementation on this board is tailored for the Mark V system's needs.
• Construction: Printed Circuit Board (PCB) with a protective coating.
• Revisions: The "AD" in DS200AAHAG1AD indicates specific functional revisions of the board.

Product Application Cases

Case 1: Industrial Gas Turbine ControlIn power generation plants, the DS200AAHAG1AD boards are critical for the control and monitoring of large industrial gas turbines. They form part of the communication backbone that allows the main turbine control engine to receive sensor data from various I/O modules (e.g., temperature, pressure, vibration sensors) and send control commands to actuators (e.g., fuel valves, inlet guide vanes). This ensures precise control over the turbine's speed, load, and protective functions, vital for efficient and safe operation.

Case 2: Steam Turbine Governor SystemsWithin steam turbine control systems, these ARCNET boards facilitate the communication between the turbine governor's control processors and the field devices. This enables the rapid exchange of data needed for accurate speed and load control, critical for maintaining grid stability and responding to demand fluctuations. The deterministic nature of ARCNET ensures that control signals are delivered reliably and predictably.

Case 3: Legacy Wind Turbine ControlWhile modern wind turbines use newer communication protocols, older GE wind turbine models utilizing the Mark V control system would have employed DS200AAHAG1AD boards. These boards would have supported the communication between the turbine's control logic, the pitch control system, and the yaw system, ensuring coordinated operation for optimal power generation and protection against adverse conditions.

Product User Reviews

"The DS200AAHAG1AD is a workhorse in our older GE Mark V systems. It's a simple board in terms of components, but its reliability in maintaining ARCNET communication is exceptional. We rarely see issues with these boards, which is a testament to GE's robust design for industrial environments. It's truly a 'set it and forget it' component." — Lead Automation Technician, Power Generation Facility

"For anyone maintaining GE Mark V systems, having a spare DS200AAHAG1AD on the shelf is a good idea, even if they are known for their longevity. They are crucial for the ARCNET link that connects our control cores to the HMI. Without it, the whole system becomes blind. It's a testament to the longevity of GE's Speedtronic architecture." — Industrial Control System Engineer, Petrochemical Plant
