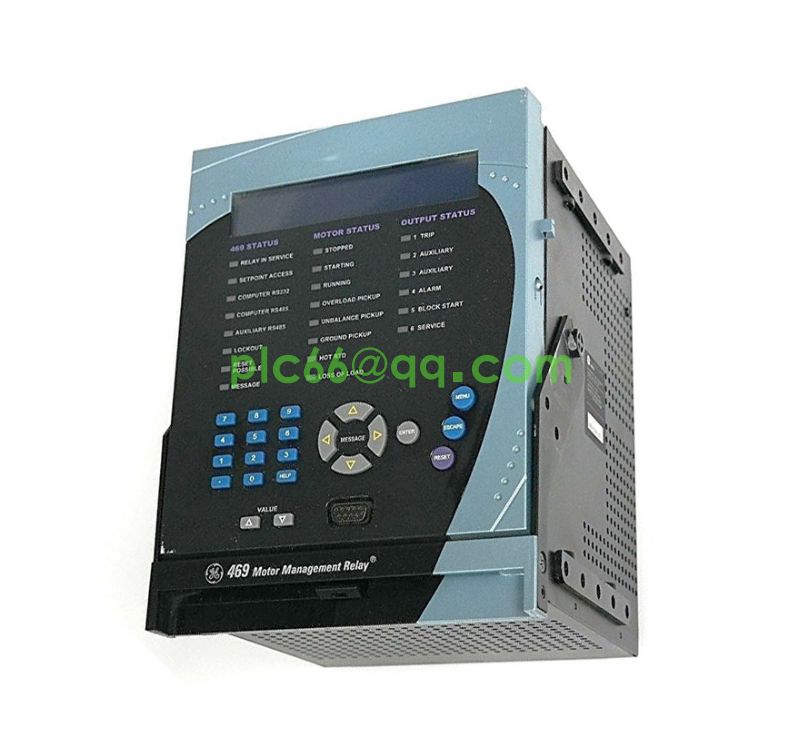

GE 469-P1-HI-A20-EH Industrial Controller: High-Performance Automation Solution for Critical Applications

I. Introduction: Addressing Industrial Control Challenges

II. Key Technical Specifications

Technological Highlights

1. Multi-Protocol Engine: Native support for Modbus/TCP, Profibus DP, Ethernet/IP, and other industrial protocols
2. Redundant Architecture: Dual CPU, dual power supply, and dual communication links ensure system availability >99.999%
3. Intelligent Diagnostics: Real-time module health monitoring with predictive maintenance alerts

III. Typical Application Scenarios

1. Power Substation Automation

• Challenge: Coordinated control of diverse equipment, remote monitoring, and rapid fault response
• Solution:
• IEC 61850 protocol integration for seamless smart device connectivity
• SOE (Sequence of Events) recording with ≤1ms resolution
• Case Study: A 500kV substation reduced fault recovery time from 2 hours to 15 minutes

2. Chemical Process Control

• Challenge: Precise control and safety interlocking in high EMI environments
• Technical Advantages:
• IEEE 1149.1 JTAG boundary scan for enhanced anti-interference
• SIL 3 safety integrity level compliant with IEC 61508
• Redundant I/O modules eliminate single points of failure

IV. Competitive Analysis

• For multi-protocol integration and complex algorithms: Choose GE 469-P1-HI-A20-EH
• For Siemens ecosystem compatibility: Siemens S7-416-3 is preferred
• For industry-specific DCS solutions: Honeywell C300 offers better specialization

V. System Integration & Configuration

1. Programming Environment

• Supports all five IEC 61131-3 standard programming languages (LD, FBD, ST, IL, SFC)
• Graphical configuration tools enable rapid I/O mapping and communication setup

2. Redundant System Setup

• Dual CPUs synchronize in <100μs with <50ms switchover time
• Hot-swappable modules allow maintenance without system shutdown
• Recommended with GE UR7700 Redundancy Manager for full redundancy

VI. Customer Case Studies & Certifications

• A multinational pharmaceutical company: Reduced batch processing time by 18% and improved OEE to 92%
• A Middle East refinery: Ran continuously for over 5 years in 60°C environments without failure

• CE, UL, CSA Certified
• IEC 61508 SIL 3 Safety Certified
• ATEX Zone 2/22 Explosion-Proof Option

VII. Purchase Information & Support

• Memory Upgrade: Up to 1GB Flash / 4GB DRAM
• Communication Modules: Fiber optic and wireless options available
• Environmental Protection: IP65-rated enclosures
