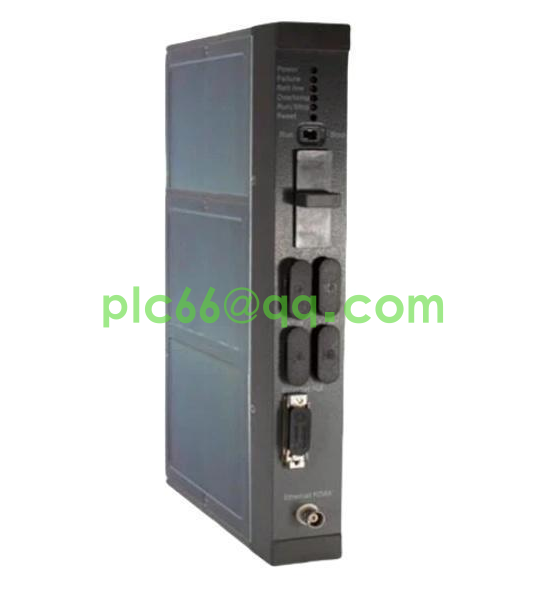

Product Number:ABB DCP02 CPU MODULE: Advanced Control Processing, Industry Standard Design

Product Overview

ABB DCP02 is a widely used industrial automation control module. The following is an introduction from different aspects:

Product type and application

CPU module: It is the central processing unit in the ABB Freelance 2000 distributed control system (DCS) and can be used to achieve precise control and management of industrial production processes, such as production process control in industries like chemical engineering, power, and metallurgy.

DC converter module: A 2W isolated non-regulated DC/DC converter module belonging to the DCP02 series, it provides stable DC power for various industrial equipment and is often used in application scenarios that require signal path isolation, such as power supply for sensors and actuators in automated production lines.

Performance characteristics

Powerful processing capability: Equipped with a 32-bit processor and a floating-point operation unit (FPU), it features strong computing power and response speed, capable of handling complex control and data processing tasks. It supports multi-task processing and parallel operation, enhancing system efficiency and flexibility.

Rich communication interfaces: It features multiple interfaces such as Ethernet and serial communication. Among them, two Ethernet ports are used for communication with other DCP02 modules, I/O modules and other devices; The serial port can be connected to programming tools, etc., facilitating system configuration and programming.

High reliability: Supports CPU redundancy to ensure that the system can still operate normally in case of failure, improving the availability of the system. It also has EMC certification and can work stably in complex electromagnetic environments.

Flexible programming methods: Supports multiple programming languages, such as Control Builder, Ladder Logic, and Function Block Diagram (FBD), etc., facilitating engineers to program and configure according to actual needs.

Compact design: Small in size and light in weight, when used as a CPU module, the dimensions are usually 120mm×87mm×50mm and the weight is approximately 0.4kg, which is convenient for installation and integration into various industrial control systems.

Technical parameters

Processor: 32-bit processor with floating-point operation unit.

Memory: Up to 16MB of DRAM and 4MB of flash memory.

Communication interface: 2 Ethernet ports, 1 serial port.

Power input: Depending on the specific model and application scenario, it usually supports multiple DC voltage inputs, such as 24V DC, etc.

Output characteristics: When used as a DC converter module, it has different parameters such as the number of output channels, output current and isolation voltage. For example, the output channels can reach 14, with each channel having an output current of 2A and an isolation voltage of 1500V AC.
