Product Number:Allen Bradley 1336-BDB-SP22D PCB Gate Drive 1336BDBSP22D 1336STG 575V 40HP

Product Overview

The Allen-Bradley 1336-BDB-SP22D is the PCB gate driver board in the Allen-Bradley 1336 series adjustable frequency AC drivers. It is mainly used to control and drive the IGBT (Insulated Gate Bipolar Transistor) components in the frequency converter, enabling them to precisely control the operation of the motor in accordance with the instructions of the control system.

This driver board is related to the 1336STG series frequency converter and is suitable for motor drive applications of 575V and 40HP. In the entire frequency converter system, it receives signals from the main control board, converts them into signals suitable for driving IGBTs, and achieves precise control of parameters such as motor speed and torque. Moreover, it has a fault detection function, which can promptly identify and feedback abnormal conditions during the driving process to ensure the safe operation of the frequency converter and motor equipment

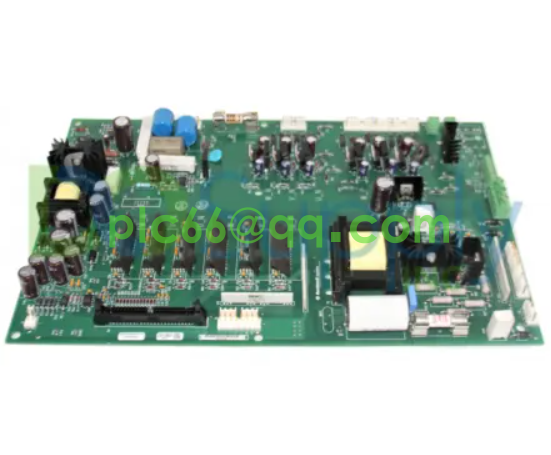

Allen Bradley 1336-BDB-SP22D PCB Gate Drive 1336BDBSP22D 1336STG 575V 40HP

This article is originally written by KIMI Xiaoming. Please bring the link www.xbplcdcs.com when reprinting

Client Concern

Part Number : Allen Bradley 1336-BDB-SP22D PCB Gate Drive 1336BDBSP22D 1336STG 575V 40HP

Condition : Brand New with 12 month warranty

Lead Time : in stock

Status: 100% original

Payment method: T/T. Currencies for receipt: US dollar, New Zealand dollar, Chinese yuan, euro, Hong Kong dollar, Australian dollar, British pound, Canadian dollar, ruble and other global currencies

Sales Manager: Li Ming

WeChat: 18059884790

WHATSAPP:+86 18059884790

Click to add 【WHATSAPP】 and start a new experience of instant communication

Email:plc66@qq.com

Allen Bradley 1336-BDB-SP22D PCB Gate Drive 1336BDBSP22D 1336STG 575V 40HP  Not what you want?

Hot Module

The following are some models related to 1336-BDB-SP22D in the Allen Bradley 1336 series:

1336-BDB-SP44D: It is also the PCB gate driver board model in the Allen Bradley 1336 series frequency converters. It has similar functions to 1336-BDB-SP22D, but there may be some differences in some parameters or performance.

1336-BDB-SP74D: This PCB gate driver board also belongs to this series and is suitable for some inverter products of the 1336 series. There may be differences in driving capacity, signal processing, etc.

1336 - BDB-SP79D The door drive board specially designed for the Allen-Bradley 1336 series frequency converters has a rated voltage of 575VAC, a rated power of 400HP, and a frame size of type F. It can be used for conveyor control, pump control, fan and blower control, machine tool control, etc. Compared with 1336-BDB-SP22D, there are significant differences in aspects such as power level.
