Brief Product Description

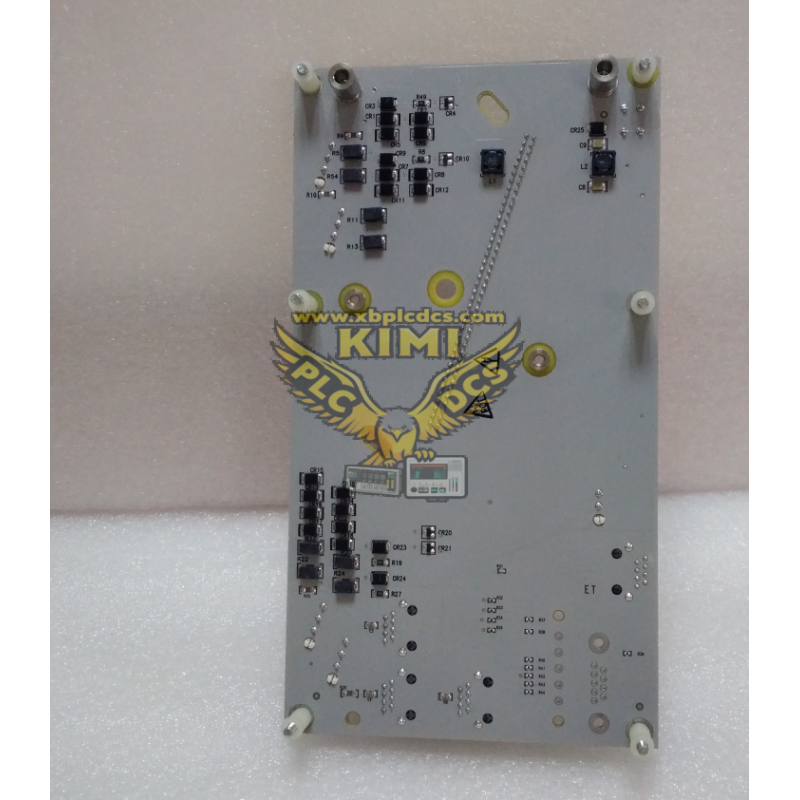

Honeywell CC-PAIN01, part number 51410069-175, is a Series C IOM analog input module for Honeywell Experion PKS C300 controller. It is a non-HART 16 single-ended channel analog input card dedicated for 4-20mA two-wire loop-powered transmitters. The module provides non-incendive loop power supply for field instruments without requiring external power source. It must be used with matching IOTA terminal assemblies: CC-TAIX51 for simplex or CC-TAIX61 for redundant IOTA configuration. It features 16-bit high-precision A/D conversion, galvanic isolation between field circuits and backplane bus, plus built-in digital filtering to suppress industrial electromagnetic noise. Per-channel diagnostics monitor wire break, short circuit and module hardware faults. Fully tested surplus and refurbished Honeywell CC-PAIN01 (51410069-175) modules are available for legacy Experion PKS system maintenance, spare replacement and plant retrofit projects.

Core Product Functions

• 16-channel single-ended non-HART analog input module for Experion PKS C300 Series C I/O system
• Only accepts 4-20mA signals from 2-wire transmitters, no HART protocol support
• Built-in non-incendive loop power supply for field transmitters, external loop power not required
• Compatible with CC-TAIX51 simplex IOTA or CC-TAIX61 redundant IOTA for field wiring termination
• 16-bit high accuracy A/D sampling, galvanic isolation and signal filtering for noise reduction
• Per-channel self-diagnosis to detect wire break, short circuit, loop failure and module hardware faults
• Collect pressure, temperature, flow and level PV values and send to C300 for closed-loop control and trending
• Supports redundant IOTA configuration to increase reliability for critical measurement loops
• Supports hot-swap operation for online rack maintenance without full system shutdown

Application Scenarios

• Legacy Honeywell Experion PKS C300 DCS Series C I/O measurement system
• Thermal power plant boiler and turbine pressure, temperature, flow and level signal acquisition
• Petrochemical, refinery continuous process parameter monitoring and closed-loop regulation
• Oil & gas, pulp & paper plant conventional 4-20mA two-wire transmitter signal collection
• Metallurgy, water treatment industrial process variable monitoring system
• Legacy Experion PKS AI module replacement, maintenance and plant retrofits

FAQ (Frequently Asked Questions)

• Q: Measurement value abnormal or no reading after installing CC-PAIN01?
  A: Verify IOTA model matches CC-PAIN01, check field transmitter wiring and loop circuit, inspect backplane contact and shielding grounding, confirm module configuration in Experion PKS.
• Q: Does Honeywell CC-PAIN01 support hot-swap replacement?
  A: Yes, hot swap is supported. Risk assessment and LOTO lockout-tagout must be performed before replacement to avoid abnormal process alarms.
• Q: What is the difference between CC-PAIN01 and CC-PAIH51?
  A: CC-PAIN01 is non-HART analog input module; CC-PAIH51 supports HART 7 communication to access multi-variable data from smart transmitters. Both are 16ch 4-20mA current-only modules with built-in loop power.
• Q: What IOTA terminals are required?
  A: CC-TAIX51 for simplex configuration, CC-TAIX61 for redundant IOTA application.
• Q: Is Honeywell CC-PAIN01 (51410069-175) available for new DCS projects?
  A: This legacy Experion Series C I/O module is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing DCS system maintenance and retrofits.
