177313-02-02 Bently Nevada TK-3E Proximity System Test Kit

Product Description

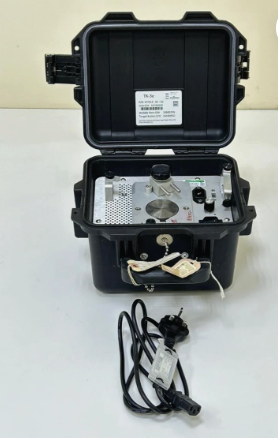

177313-02-02 is the TK-3E electrically driven proximity probe test kit manufactured by Bently Nevada (Baker Hughes). This portable calibration instrument verifies and calibrates eddy current proximity transducer systems including probe, extension cable and proximitor assemblies for 3300 and 3500 machinery monitoring racks. It combines static micrometer gap testing and motor-driven dynamic target wheel to simulate shaft displacement and vibration signals, allowing engineers to check sensitivity, linearity and signal integrity without shutting down rotating equipment. This variant uses imperial measurement scale and standard power cord configuration.

Product Features & Functions

• Motor-rotated precision target wheel for dynamic vibration simulation of rotating shafts
• Built-in precision micrometer for static gap and linearity measurement of eddy current probes
• Imperial unit scale for gap and displacement measurement
• Adjustable rotational speed to generate variable vibration frequency test signals
• Full functional test for proximity probe, extension cable and proximitor assembly
• Check transducer sensitivity, gap voltage, linearity and signal continuity
• Comes with rugged protective hard case for field transport and storage
• Designed for bench workshop testing and on-site machinery commissioning & calibration

Application Scenarios

• Field calibration and troubleshooting of Bently Nevada proximity monitoring systems
• Vibration and displacement monitoring system commissioning for turbines, compressors and generators
• Power plant, refinery and petrochemical plant predictive maintenance inspection
• Annual verification and fault diagnosis for 3500 machinery protection systems
• Bench testing of spare proximity probes and cables in instrument workshops

FAQ

Q: What is 177313-02-02?
A: It is Bently Nevada TK-3E portable proximity system test kit for eddy current transducer calibration.

Q: What is the difference between 177313-02-02 and 177313-A02-B02?
A: 177313-02-02 uses imperial scale; 177313-A02-B02 is metric version with EU power cord.

Q: Is the TK-3E test kit still in original production?
A: Bently Nevada has discontinued TK-3E series. New old stock, used and refurbished units are available in industrial spare parts market.
