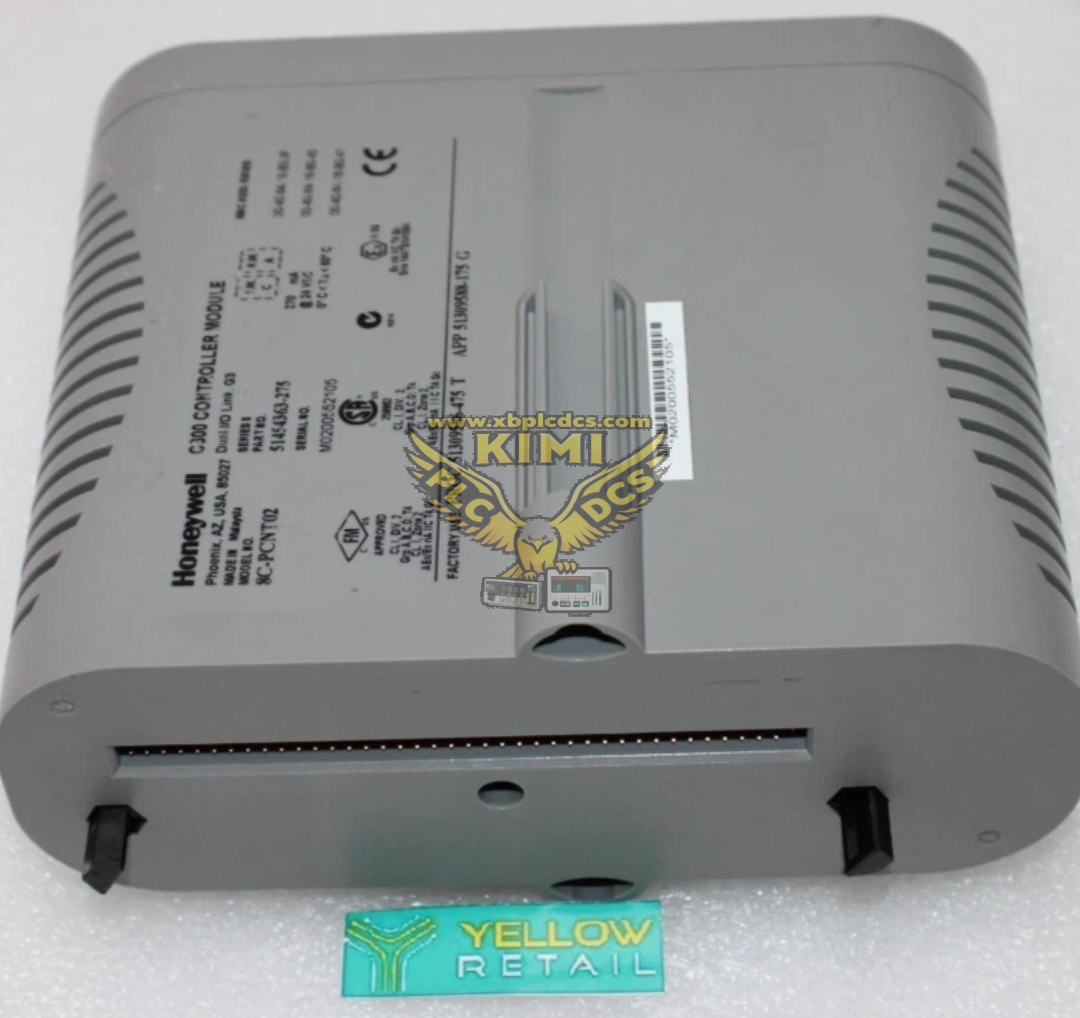

Honeywell 8C-PCNT02 Experion PKS High-Performance Process Controller Module

Product Description

The 8C-PCNT02 is a high-reliability industrial process controller independently developed by Honeywell, belonging to the classic Honeywell Experion Process Knowledge System (PKS) series DCS core control product line. As the key high-performance processing unit specially designed for large-scale continuous industrial production scenarios that have extremely strict requirements for control accuracy and system operation continuity, it is widely deployed in heavy-duty industrial scenarios such as petrochemical plants, large-scale thermal power plants, pharmaceutical production lines and other industries that have extremely strict requirements for process control stability and data processing capability, responsible for executing complex multi-loop PID control, advanced process control (APC), pulse signal high-precision counting and equipment state monitoring tasks, ensuring that the industrial DCS control system can continuously and stably operate without interruption during long-cycle uninterrupted production, providing the most fundamental high-reliability control guarantee for the stable operation of large-scale industrial process systems.

Core Technical Specifications

• Manufacturer: Honeywell, original industrial DCS system grade production standard, corresponding spare part number 51454363-275
• Product Category: Experion PKS system dedicated high-performance process controller and pulse counting module, official part number 8C-PCNT02
• Physical Parameters: Standard DIN rail modular design, net weight about 0.8kg, IP20 protection grade, fully compliant with industrial anti-vibration and anti-electromagnetic interference standards
• Electrical Parameters: 24V DC ±10% industrial power supply, maximum power consumption 25W, with built-in power supply reverse connection protection and transient voltage suppression circuit
• Performance Parameters: Adopting 32-bit high-performance industrial processor, equipped with dedicated DSP digital signal processing unit, the control loop response time is less than 2ms, which can efficiently execute hundreds of complex control algorithms and pulse signal counting tasks at the same time
• Memory Configuration: 512MB RAM, 1GB non-volatile Flash memory, no need for backup lithium battery to realize long-term control configuration data retention, effectively avoiding data loss caused by battery aging
• I/O and Communication Capability: Integrates 62 native I/O points (30 digital inputs including 2 axis encoder channels, 2 analog inputs, 28 digital outputs, 2 high-speed digital outputs), supports expansion to 1024 remote I/O points up to 1000 meters away. Natively supports Ethernet, ControlNet, Foundation Fieldbus communication interfaces, and is compatible with Modbus TCP/IP, OPC and HART industrial protocols.
• Industrial Network Features: Supports RSTP rapid redundancy ring network, full-load fault recovery time < 20ms, with port bandwidth restriction, VLAN division, QoS priority setting and port aggregation functions, which can realize stable and efficient industrial control network data transmission.
• Operating Environment: 0°C to +60°C industrial working temperature range, storage temperature -40°C to +85°C, 5%-95% non-condensing relative humidity, certified by CE, cULus and ATEX, mean time between failures (MTBF) as high as 2 million hours

Key Product Functions

• Multi-Mode Complex Process Control: The module supports three independent control modes: continuous process control, batch control and logic control, which can efficiently execute multi-loop PID regulation, advanced process control and complex interlock logic operations at the same time, ensuring that the industrial production process parameters are always maintained within the optimal control range, and the product qualification rate and production efficiency are significantly improved.
• High-Precision Pulse Signal Synchronous Counting: Built-in multiple independent high-speed pulse input channels, which can accurately collect and measure pulse signals such as flow meter, shaft encoder and tachometer in real time, support forward and reverse bidirectional counting mode, and configurable threshold alarm function, which can realize precise flow measurement, equipment running time statistics and production batch counting without additional independent counting module.
• Industrial Redundant Ethernet Stable Transmission: The module integrates complete industrial Ethernet management functions, supports 20ms-level fast ring network redundancy self-healing, port bandwidth optimization and VLAN isolation, which effectively avoids network broadcast storm and data transmission congestion, ensuring that the control data will not be interrupted in the event of single-point network link failure, completely avoiding huge economic losses caused by unexpected shutdown of the production line due to communication failures.
• Perfect Honeywell System Compatibility: The module is fully compatible with all Honeywell Experion PKS series DCS system equipment, can seamlessly connect with existing system controllers, operation stations and on-site intelligent instruments, no need to replace the existing system hardware in large quantities, which can be directly used as spare parts for maintenance and replacement of old Experion PKS systems that have been in operation for many years, effectively extending the service life of the old DCS system.
• Full Self-Diagnosis and Fault Locating: The module continuously performs real-time all-round health monitoring on the operation state, I/O signal state and communication link state, automatically identifies abnormal states such as signal line open circuit, communication interruption, module hardware fault, and uploads fault alarm information to the DCS system operation station in time, helping maintenance personnel quickly locate system hidden dangers and effectively shorten the system fault recovery time.

Typical Application Scenarios

• Petrochemical industry: Large-scale refinery and chemical plant Experion PKS DCS system, responsible for the core process control, flow pulse measurement and equipment state monitoring of the whole production line.
• Power industry: Large-scale thermal power plant boiler and turbine DCS control system, realizing stable and reliable process parameter control and turbine speed pulse signal monitoring.
• Pharmaceutical industry: GMP standard pharmaceutical production line DCS control system, ensuring that the production process control data can be transmitted stably and reliably without interruption.
• Metallurgy industry: Large steel mill rolling mill DCS control system, realizing high-speed and stable motion control and pulse position signal processing of the whole production line.
• Industrial transformation and upgrading projects: Spare parts replacement and system maintenance of old Honeywell Experion PKS series DCS systems that have been in operation for many years in various industrial sites.
