Brief Product Description

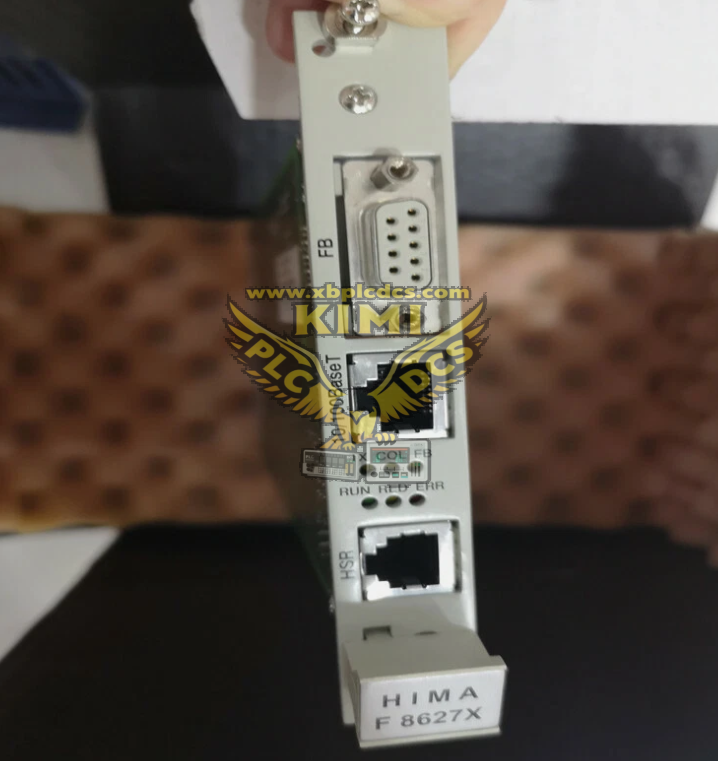

HIMA F8627X is an upgraded SIL 3 certified high-speed safety Ethernet communication module designed for HIMA HIMax and HIQuad safety PLC systems. Supporting 100 Mbps Fast Ethernet transmission and Black Channel safety technology, this advanced module enables deterministic and secure data exchange for safety instrumented systems. It integrates multi-protocol processing capabilities and enhanced EMC interference resistance, ensuring stable communication between safety controllers, distributed I/O, and upper SCADA/DCS platforms. Optimized for long-term continuous operation in harsh industrial environments, the F8627X features hot-swappable functionality and comprehensive self-diagnosis. Fully tested surplus and refurbished HIMA F8627X units are available for legacy safety system maintenance, communication upgrade and retrofit projects.

Core Product Functions

• SIL 3 compliant safety Ethernet communication compliant with IEC 61508 industrial safety standards
• 100 Mbps Fast Ethernet interface delivers high-speed, low-latency safety data transmission
• Black Channel technology supports safe communication over standard industrial Ethernet networks
• Multi-protocol compatibility including SafeEthernet, Modbus TCP, PROFINET and OPC DA
• Seamless data interaction between HIMax/HIQuad safety PLCs, field I/O and remote monitoring systems
• Independent communication processing reduces main CPU load and improves system operational stability
• Real-time self-diagnosis for network faults, connection loss and internal module hardware anomalies
• Hot-swappable rack mounting design allows in-service replacement without system shutdown

• Industrial-grade anti-vibration, anti-interference and wide-temperature design for critical process environments

Application Scenarios

• HIMA HIMax and HIQuad series Safety Instrumented Systems (SIS) network communication expansion
• Oil & gas, petrochemical and refinery ESD emergency shutdown and F&G safety systems
• Power plant boiler, turbine and auxiliary equipment safety interlock monitoring systems
• Chemical process, pipeline and pharmaceutical industrial safety protection automation platforms
• Critical industrial real-time data transmission, remote monitoring and centralized control systems
• Legacy HIMA safety network upgrade, faulty communication module replacement and system retrofits

FAQ (Frequently Asked Questions)

• Q: Communication disconnection occurs after installing HIMA F8627X?
  A: Verify Ethernet cable integrity and port status, match network protocol parameters, check backplane connection, and confirm safety system configuration synchronization.
• Q: Does F8627X support hot-swap replacement?
  A: Yes, it supports hot swap in running safety racks. Strict lockout-tagout procedures are required to prevent unexpected safety trip actions during replacement.
• Q: What is the difference between F8627 and F8627X?
  A: F8627X is an upgraded version with faster processing speed, richer protocol support, stronger anti-interference performance and compatibility with HIMax modern safety systems.
• Q: What safety level does F8627X achieve?
  A: The module is fully certified for SIL 3 safety integrity level, meeting global process industry safety control requirements.
• Q: Is HIMA F8627X available for new safety system projects?
  A: This legacy safety communication module has reached end-of-life. Only fully tested surplus and refurbished units are supplied for existing safety system maintenance and retrofits.
