Applied Materials 0190‑43080 PCB Assembly

Product Description

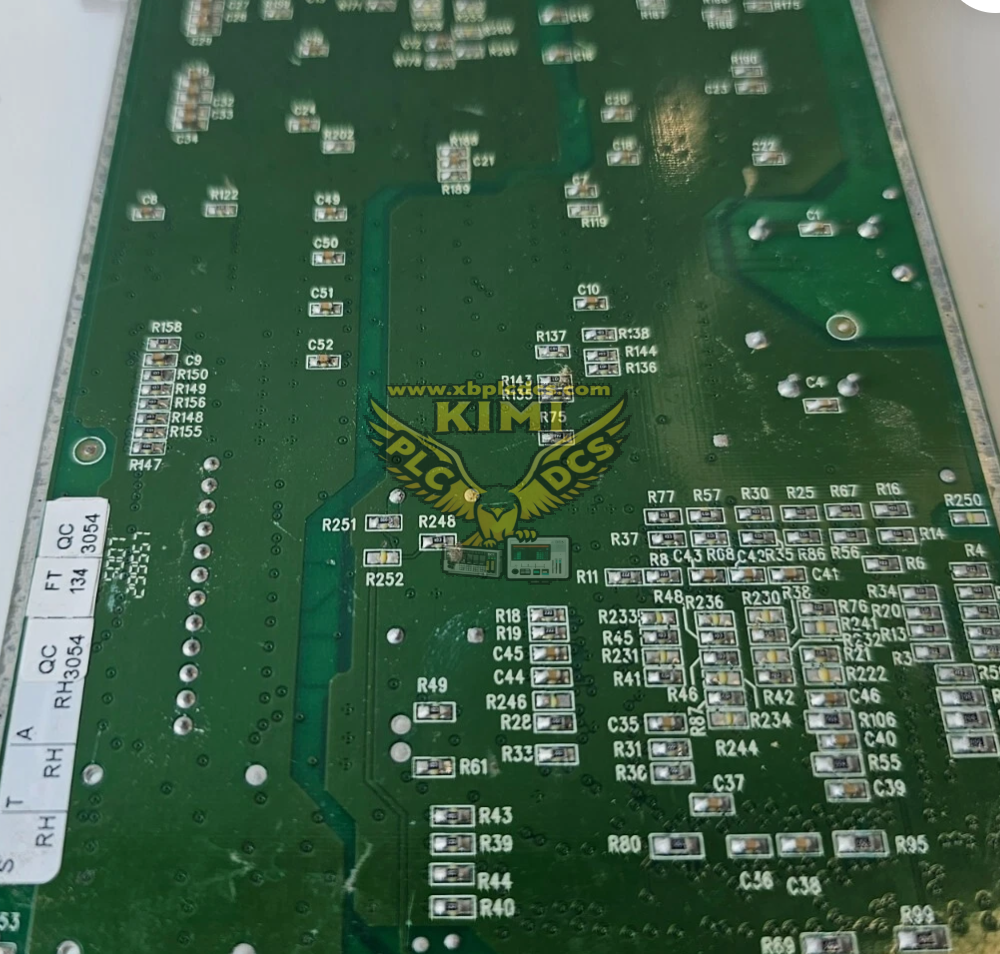

0190‑43080 is a multi‑channel DC current‑control PCB assembly designed for Applied Materials semiconductor process platforms. It provides independent closed‑loop DC current output for heater or bias‑load control inside process chambers. The board integrates current sensing, PID regulation, short‑circuit and overload protection circuits, aluminum‑magnesium EMI‑shielded housing, and industrial communication interfaces. Widely deployed on PVD, CVD and Etch cluster tools for precise thermal and biasing control of process hardware.

Key Functions

• 4‑channel independent DC current regulation, configurable range: 0‑10 A / 0‑20 A / 0‑50 A per channel, accuracy ±0.5% full scale
• Maximum output voltage up to 100 VDC, hardware overload & short‑circuit protection per channel
• Built‑in PID and adaptive control algorithm for smooth set‑point ramping during recipe execution
• Communications: EtherNet/IP, Modbus‑TCP, RS‑485 Modbus‑RTU for real‑time telemetry and parameter configuration
• Reports channel status, fault flags and measured current values to tool host controller
• Over‑temperature interlock triggers channel cut‑off to protect board and chamber components

Application Scenarios

• Applied Materials PVD / CVD / Etch cluster processing tools
• Chamber heater DC drive, bias element current control
• Wafer processing thermal set‑point closed‑loop regulation
• 200 mm and 300 mm semiconductor fabrication production environments

Common Issues & FAQ

• Channel current deviation / unstable output: Check terminal screw torque, sense‑loop wiring integrity; calibrate channel offset and gain via tool service menu; inspect for degraded on‑board sense resistors.
• Channel shutdown with overload fault: Verify chamber load impedance for shorts; confirm recipe current set‑point does not exceed hardware rating; check for partial internal board component failure.
• No host communication: Verify IP / Modbus address configuration, cable continuity, switch port status; inspect board physical link LED indicators.
• Over‑temperature alarm: Confirm chassis forced‑air cooling airflow is unobstructed; check for accumulated dust on board heat‑dissipation areas; verify ambient cabinet temperature stays within 0‑55 °C operating range.
• Refurbished unit note: Always perform full‑channel load test, communication verification and calibration after replacement before releasing to production.
