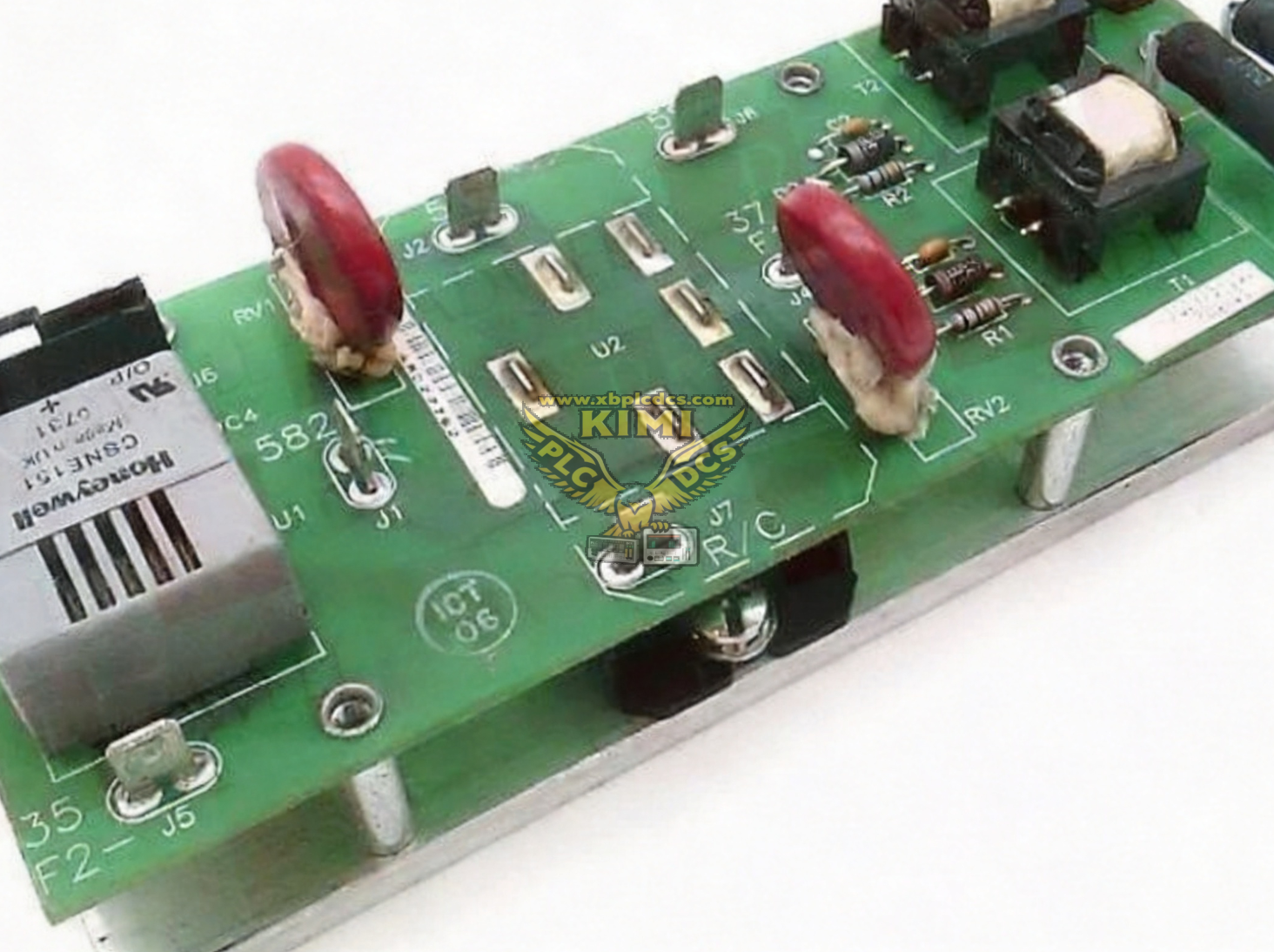

Reliance Electric 0‑58719‑32 FlexPak 3000 Field Supply Board (15A)

Product Description

The 0‑58719‑32 is a 15 Amp field supply circuit board manufactured by Reliance Electric for FlexPak 3000 series DC variable speed drives. It supplies controlled DC excitation power to the field winding of DC motors. The PCB has conformal coating for protection against dust, humidity and vibration in industrial control cabinets. This legacy board has been discontinued after Rockwell acquired Reliance Electric. Available stock on the market is mainly surplus or refurbished spare parts for maintenance and repair of existing FlexPak3000 DC drive systems.

Product Functions

• Convert input AC power into regulated DC excitation current for DC motor field winding
• Precisely control motor field current to adjust motor speed and maintain constant torque characteristics
• Built‑in overcurrent, overvoltage and short‑circuit protection for field circuit and motor field coil
• Provide field current feedback signal to the main regulator board for closed‑loop drive control
• Monitor field loss condition and trigger interlock alarm or drive shutdown when field circuit breaks
• Terminal blocks for power wiring and signal interconnection with the FlexPak3000 main control board
• Onboard status indicators for visual diagnosis of power and fault conditions during field commissioning

Application Scenarios

• Spare replacement for Reliance FlexPak 3000 DC variable speed drives in industrial production lines
• DC motor speed control for extruders, paper machines, metal rolling mills and wire drawing equipment
• Conveyor, crane and material handling DC drive system maintenance and retrofit projects
• Water treatment, mining and metallurgy legacy DC drive equipment overhaul
• On‑site repair of FlexPak3000 drives with failed original field supply hardware
• Spare parts inventory for factories still operating obsolete Reliance Electric DC drive systems

Common Problems

• No field output or low excitation current：aging power rectifier diodes, failed power capacitors or blown fuses on the board
• Drive reports field loss fault：open circuit on field winding, broken trace or poor connector contact on supply board
• Unstable motor speed and field current fluctuation：drifted current sampling circuit or degraded power components
• Overcurrent alarm triggered repeatedly：motor field coil short circuit, internal board short or wrong current setting
• Board overheating：dust accumulation on power components, degraded heat dissipation or continuous overload
• Intermittent field supply dropout：cold solder joints, oxidized terminals and vibration induced connection failure
• Maintenance difficulty：original production discontinued, limited replacement components and no official firmware support
