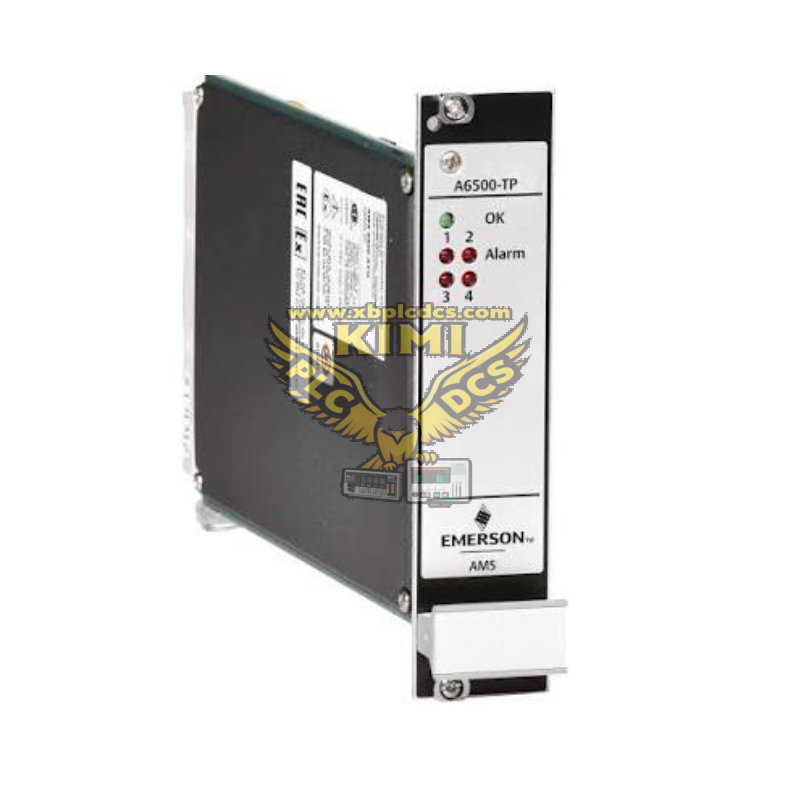

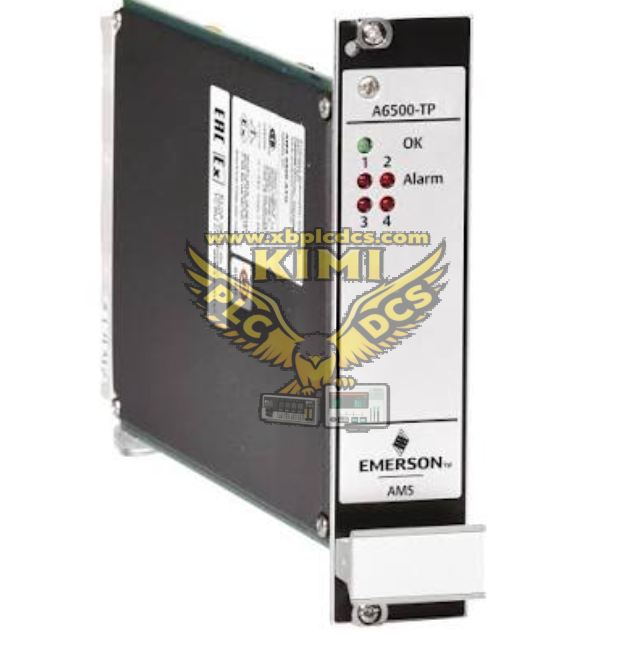

Emerson A6500‑TP (0020007383) Temperature Process Card for AMS 6500 ATG

Product Description

A6500‑TP, part number 0020007383, is a hot‑swappable temperature and process measurement card for Emerson AMS 6500 ATG API‑670‑compliant machinery protection rack. Installed inside A6500‑xR system rack, it features four galvanically‑isolated universal analog input channels supporting RTD, thermocouple and standard 0‑1V, 0‑10V, 0/4‑20 mA process signals. The module also integrates 2 digital inputs, 4 isolated 0/4‑20 mA analog outputs and 6 configurable digital alarm outputs. Measured data is transferred over internal rack RS‑485 backplane bus to A6500‑CC communication card, providing temperature and auxiliary process data for critical rotating‑machinery monitoring together with vibration measurement cards. It supports sensor fault detection and configurable alarm thresholds for turbine‑hall cabinet continuous operation.

Product Features

• Four independent galvanic‑isolated universal analog input channels for multi‑sensor measurement
• Multi‑sensor support: Pt100 RTD, multiple types thermocouple (internal/external cold‑junction compensation), 0‑1V, 0‑10V, 0/4‑20 mA process transmitter signals
• 24‑bit high‑resolution ADC, sensor open‑circuit and short‑circuit diagnostic function for each channel
• On‑board resources: 2 digital inputs, 4 isolated 0/4‑20 mA analog outputs, 6 configurable solid‑state alarm digital outputs
• Internal RS‑485 backplane bus communicates with A6500‑CC card, data uploaded via Modbus‑TCP, Modbus‑RTU, OPC UA protocols
• Hot‑swap capable; replacement without power‑down of entire A6500‑xR rack; anti‑static handling required during maintenance
• Front‑panel LED indicators for module OK status and channel alarm for on‑site quick diagnostics
• User‑configurable alarm thresholds, trend recording for temperature and auxiliary process variables
• Wide operating temperature range:‑20 °C ~ +70 °C, high EMC noise immunity for heavy‑interference industrial cabinet environment
• Seamless co‑work with A6500‑UM vibration card and A6500‑RC relay card for complete machinery protection system

Application Scenarios

• Bearing metal temperature monitoring of gas turbine, steam turbine in combined‑cycle power plant
• Petrochemical refinery critical compressor casing temperature, lube‑oil temperature and auxiliary process signal acquisition
• Rotating‑machinery auxiliary process parameter collection such as pressure, flow transmitted via 4‑20 mA transmitters
• Off‑shore and on‑shore oil‑gas plant critical equipment online temperature monitoring conforming to API‑670 standard
• Transmit temperature and process variable to DCS/PLC system via isolated 4‑20 mA analog output
• Spare‑part replacement and system expansion for existing installed AMS 6500 ATG monitoring racks

Common Problems & Troubleshooting

• Module OK LED off, initialization failure: Check rack power supply; re‑seat A6500‑TP module; inspect backplane gold‑finger contamination; confirm exact part‑number 0020007383 hardware compatibility.
• Channel alarm triggered, temperature / process reading abnormal: Inspect sensor cable open‑circuit or short‑circuit; verify sensor type matches software configuration; check cold‑junction compensation setting for thermocouple; perform channel loop test.
• Fluctuating unstable measured value: Check sensor mounting and cable shielding; separate sensor wiring away from high‑power cables; verify cabinet grounding; inspect connector oxidation caused by cabinet vibration.
• 4‑20 mA analog output incorrect or frozen: Verify output‑loop load impedance within specification; check channel alarm status; re‑download A6500‑TP configuration parameters via AMS Machine Studio.
• Cannot upload data to host system: Confirm A6500‑CC communication card works normally; inspect rack internal RS‑485 backplane bus; verify Modbus parameter setting matches host configuration.
• Digital input / output abnormal action: Check field‑side 24 VDC loop power supply; inspect short‑circuit fault on field wiring; verify alarm‑logic assignment in engineering software.
• Spare‑part replacement mismatch risk: Use exact A6500‑TP part number 0020007383; cannot substitute with A6500‑UM or A6500‑RC; strictly execute anti‑static operation during hot‑swap maintenance.
