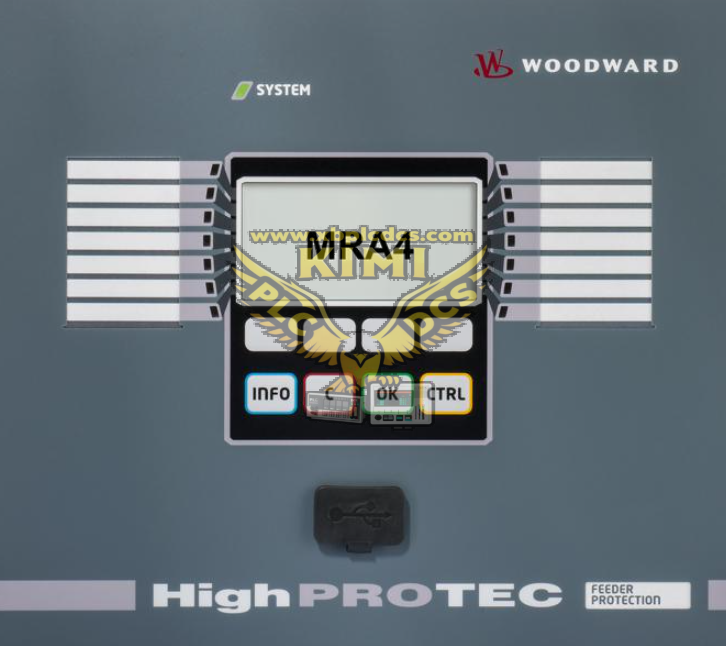

Woodward HighPROTEC MRA4 Directional Feeder Protection Relay

Product Description

MRA4 is a multifunctional numerical directional feeder protection relay under Woodward HighPROTEC series. It supports True‑RMS and DFT measurement algorithms, and provides abundant configurable protection, metering, control and disturbance recording functions. This device is available in door‑mount or 19‑inch rack‑mount housing options, with flexible I/O channel combinations, local LCD keypad HMI, multiple industrial communication interfaces. It is widely applied for medium‑voltage feeder, generator and network protection, configured and diagnosed via free Smart View‑SE PC software. Multiple hardware variants are defined by complete type code MRA4‑2xxxxx.

Product Features

• Directional & non‑directional phase overcurrent protection, directional earth‑fault protection, unbalanced load protection
• Complete voltage protection elements: over‑voltage, under‑voltage, synchro‑check, VT fuse failure supervision
• High‑precision metering: current, voltage, power, energy, frequency, THD harmonic distortion measurement
• Flexible configurable digital inputs and relay outputs for breaker control, interlock and alarm logic
• Built‑in disturbance recorder, fault event log, SOE sequence‑of‑event with high‑resolution time stamp
• Local 128×64 LCD display and keypad for onsite checking, parameter modification and fault review
• Rich communication: Modbus RTU/TCP, DNP3, IEC‑60870‑103, IEC‑61850, Profibus‑DP, front‑panel USB service port
• Smart View‑SE software supports offline configuration, parameter upload/download and firmware upgrade
• Wide‑range auxiliary power supply, adaptable for substation AC and DC power source environment
• Switchgear management function, programmable user logic, plausibility check for protection setting values

Application Scenarios

• Incoming and outgoing feeder protection for medium‑voltage substations
• Industrial plant medium‑voltage switchgear protection and breaker control
• Cogeneration and distributed power generation generator unit protection
• Petrochemical, mining and water‑treatment plant power system supervision
• Utility distribution network directional overcurrent and earth‑fault protection
• Field protection device connected with SCADA / DCS remote monitoring platform

Common Problems & Troubleshooting

• No LCD display after power‑on: Check auxiliary AC/DC power supply voltage and polarity; inspect cabinet fuse and terminal block tightening torque.
• Incorrect measured electrical values: Verify CT/VT secondary wiring condition; confirm CT/VT ratio parameter matches actual instrument transformers; check for short‑circuit or loose terminals.
• Unexpected protection trip or false alarm: Review protection setting parameters and directional polarizing source configuration; check external digital‑input interlock signals; download disturbance record for fault analysis.
• Communication connection failure: Inspect communication cable and interface hardware; match device address, baud‑rate and protocol parameters; eliminate ground‑loop interference on signal cables.
• Smart View‑SE cannot connect to relay: Verify USB / network physical connection; confirm correct communication settings in software; check device write‑protection status.
• Breaker local / remote control failure: Inspect DI/DO channel wiring; verify control permission logic configuration; check breaker auxiliary contact and trip‑coil circuit.
• Device self‑supervision alarm: Perform full power‑cycle reset; check cabinet ventilation and ambient operating temperature; replace unit if persistent self‑test fault occurs.
