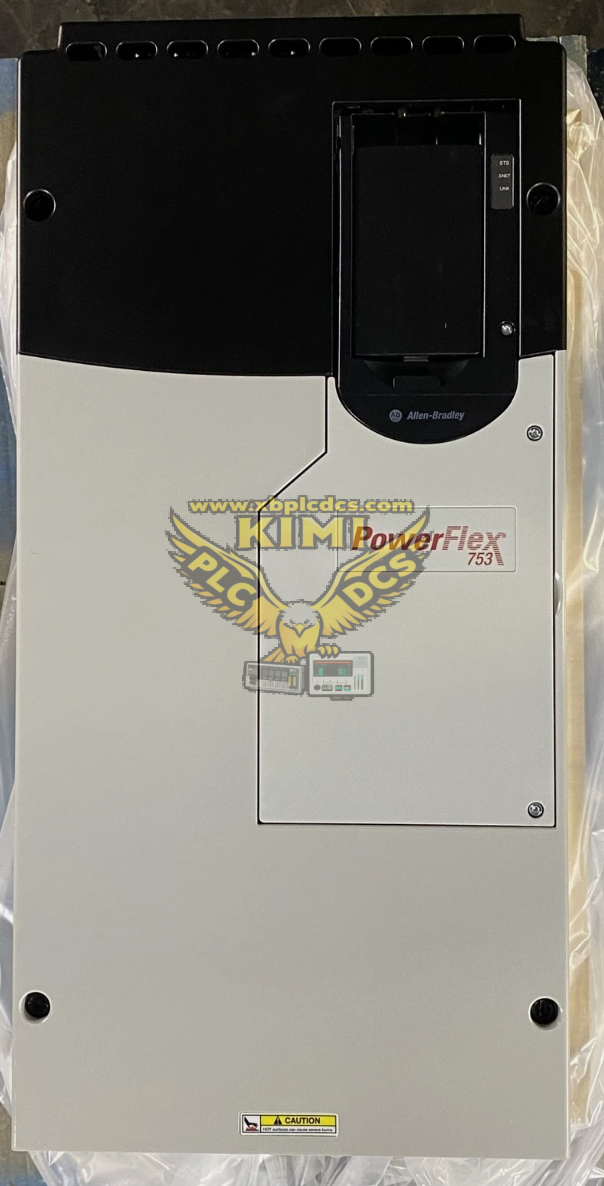

Allen‑Bradley 20F1ANC205AA0NNNNN PowerFlex 753 Air-Cooled AC Variable Frequency Drive

1. Product Description

20F1ANC205AA0NNNNN is a standard air-cooled AC drive under Rockwell Automation Allen‑Bradley PowerFlex 753 series, designed for general-purpose three-phase AC motor speed and torque control. It adopts modular slot architecture, built-in basic I/O and protective circuits, and supports multi-type motor control algorithms for industrial automation production lines.

• Full Model Code Decoding
  20F = PowerFlex 753 drive series;
  1 = Reserved internal code;
  A = AC input with precharge circuit, no DC bus terminals;
  N = IP20/IP00 NEMA Open Type enclosure;
  C = 400V 3-phase input voltage (50Hz);
  205 = Rated output current 205 Amps;
  A = Frame 6 hardware size;
  A = EMC filtered design, CM jumper pre-installed;
  0 = Dynamic braking transistor equipped;
  NNNNN = No HIM operator panel, no optional communication/safety/I/O expansion cards pre-installed.
• Core Electrical Ratings: 3-phase 380–480V AC input; 110kW Normal Duty (ND), 90kW Heavy Duty (HD); 205A continuous output current; forced air cooling system.
• Hardware Structure: Standard rack-mounted open frame cabinet, built-in embedded digital I/O terminals, three expansion slots for communication, safety or feedback modules, metal EMC shielding shell, replaceable cooling fan assembly.
• Control Algorithms: Supports V/Hz control, sensorless vector control and FORCE field-oriented vector control for asynchronous induction motors.
• Certifications & Environment: CE, UL, CSA industrial safety approvals; operating temperature 0°C ~ +50°C; storage temperature -20°C ~ +70°C; humidity 5–95% non-condensing.

• System Compatibility: Fully compatible with Rockwell Logix PLC series, supports EtherNet/IP, DeviceNet, Modbus RTU via optional communication cards, integrated DeviceLogix local logic function.




2. Core Product Functions

• Precise Motor Speed & Torque Regulation: Real-time closed-loop speed control for induction motors, stable torque output at low speed, adjustable acceleration/deceleration ramps to avoid mechanical impact.
• Built-in DeviceLogix Local Logic Control: Executes simple PLC logic on drive without upper controller, processes sensor signals, interlock logic and automatic production cycle control.
• Comprehensive Multi-Level Protection: Overcurrent, overvoltage, undervoltage, overheat, motor overload, ground fault, phase loss and stall protection; auto shutdown and fault code storage for abnormal conditions.
• Dynamic Braking Control: Onboard DB transistor connects external braking resistor to consume regenerative energy during motor fast stop or downward load operation.
• Predictive Equipment Diagnostics: Monitors fan running hours, internal temperature and relay aging status; outputs pre-alarm signals for predictive maintenance to reduce unplanned downtime.
• Industrial Network Data Communication: Upload motor speed, current, fault status and operation data to PLC/SCADA via optional communication cards; receives remote speed reference and run/stop commands from upper control system.

3. Typical Application Scenarios

• Heavy-duty conveyor systems, palletizing and material handling equipment in automotive, logistics and manufacturing plants.
• Large water supply pumps, cooling tower fans and HVAC circulating fan units in power plants and chemical facilities.
• Mining belt conveyors, crusher motors and large mixing agitators with heavy starting load.
• Packaging machinery, textile production lines and metal processing equipment requiring stable variable speed control.
• Maintenance spare replacement for existing PowerFlex 753 drive stations to restore production line operation quickly.
