Woodward 8200-226 Servo Position Controller Origina New In Stock
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
Product: Woodward 8200-226 – SPC Servo Position Controller
Woodward 8200-226 | High Precision Digital Valve Actuator Driver for Turbine & Engine Control System
Woodward 8200-226 is a digital Servo Position Controller (SPC) from Woodward, upgraded replacement model for legacy 8200-224 and 8200-225 units. It acts as the signal conversion and closed-loop drive core between turbine main control systems and hydraulic/pneumatic servo actuators. The module receives position setpoint signals via analog 4–20mA or DeviceNet bus, collects real-time position feedback from LVDT/RVDT/potentiometer sensors, runs high-speed PID closed-loop algorithms, and outputs bipolar proportional current to drive fuel valves, steam control valves and gas throttle actuators. Widely deployed on gas turbines, steam turbines, reciprocating engines and generator sets to maintain stable speed, load and combustion ratio control.
Core Technical Specifications
- Model: 8200-226 | Brand: Woodward | Series: SPC Servo Position Controller
- Power Supply: 18–32 VDC, nominal 24VDC industrial auxiliary power
- Setpoint Input: 4–20mA analog, 1–5VDC, PWM signal, DeviceNet digital bus
- Position Feedback: Compatible with LVDT, RVDT, linear potentiometer single/dual channel feedback
- Servo Drive Output: Bipolar configurable ±10mA ~ ±250mA proportional current output
- Control Resolution: 11-bit high-definition digital closed-loop calculation, system accuracy ≤0.25%FS
- Communication Interfaces: DeviceNet, RS232 service port for PC configuration via SPC Service Tool
- Protection Circuits: Reverse polarity, overvoltage, short-circuit, actuator overtravel fault protection
- Operating Temperature: -40°C ~ +70°C | Storage Temperature: -40°C ~ +85°C
- Humidity: 5%–95% RH non-condensing, optional full conformal coating for corrosive environments
- Mounting: Standard DIN rail or cabinet panel mounting, IP20 protection grade
- Dimension: 329 × 203 × 65mm | Net Weight: 1.55kg
- Certifications: CE, industrial EMC anti-interference, power generation safety standard compliance
Main Functional Features
- High-speed digital PID closed-loop control, eliminates valve hunting, achieves ultra-stable valve positioning under variable load fluctuation
- Dual feedback channel support, single or redundant position sensor wiring to improve system safety for critical turbine protection
- Dual signal input mode: analog hardwire or DeviceNet digital bus, flexible docking with Woodward 505/5000/NetCon main governors
- Complete self-diagnosis function, real-time monitoring of power supply, feedback signal loss, output short circuit and actuator deviation faults
- PC software calibration via SPC Service Tool, supports parameter tuning, actuator stroke calibration, fault log export and firmware upgrade
- Wide temperature range industrial design, stable operation in power plant, offshore platform and petrochemical harsh cabinet environments
- Built-in multi-stage anti-surge and isolation circuit, suppress electromagnetic interference from high-power drive equipment
- Plug-and-play modular structure, easy disassembly and replacement during unit maintenance without complex wiring rework
Application Industries
- Thermal & Combined Cycle Power Plant: Gas/steam turbine fuel gas valve, steam inlet valve precise position control
- Oil & Gas Industry: Onshore gathering station, offshore platform gas turbine generator speed & load regulation
- Refinery & Petrochemical: Reciprocating compressor, turbo-expander fuel actuator closed-loop control system
- Marine Power: Ship main engine and auxiliary turbine governor valve drive control cabinet
- Industrial Cogeneration: Biogas engine, diesel generator set fuel metering valve positioning control

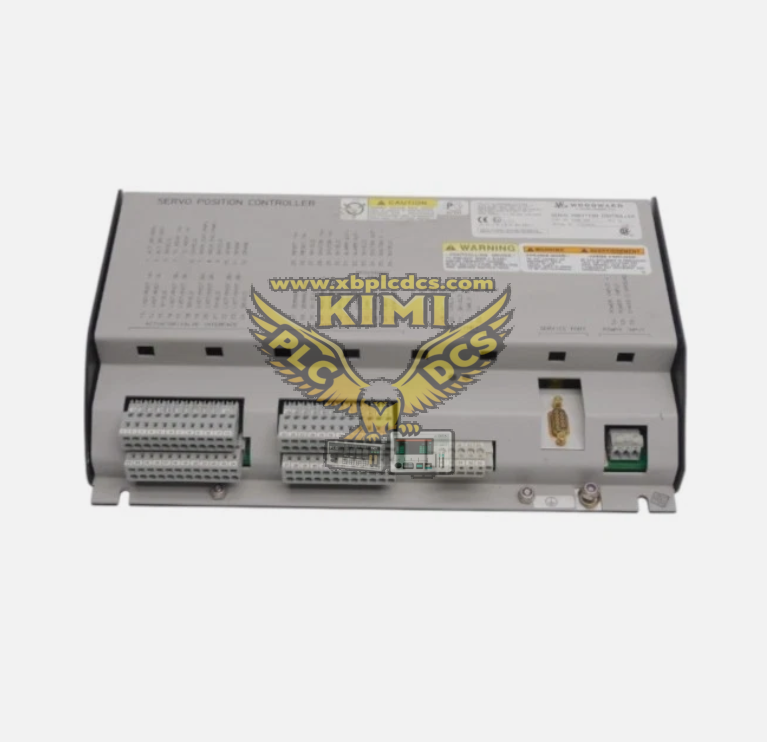

Product Picture
