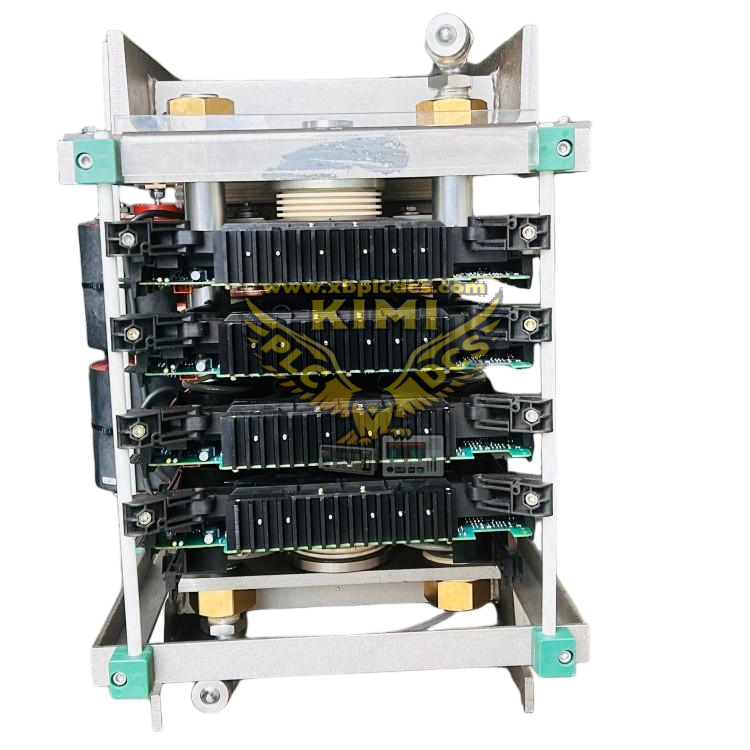

ABB ACS6000 S-073M 3BHB009884R0014 7 MV Standard-Impulse Phase Module

Product Description

The ABB ACS6000 S-073M 3BHB009884R0014 is a 7 MV standard-impulse phase module engineered for ACS6000 medium-voltage drive systems, leveraging mature IGCT (Integrated Gate-Commutated Thyristor) semiconductor technology to deliver reliable, low-loss power conversion. It integrates precision gate driver circuits, real-time single-point thermal monitoring, and dual-mode cooling interfaces (forced air/liquid) to adapt to moderate industrial environments with stable temperature and dust levels. The module features a modular plug-and-play design for easy maintenance, complies with IEC 61800-5-1 safety standards, operates stably at ambient temperatures from -10°C to +40°C, and offers IP20 front-panel protection, ensuring cost-effective long-term reliability in medium-power motor control applications.

Key Functions

The S-073M 3BHB009884R0014 delivers core 7 MV standard-impulse drive phase control capabilities: High-precision phase voltage/current regulation via IGCT technology for smooth motor speed/torque control and IEEE 519 grid harmonic compliance; 7 MV standard-impulse operation to handle steady medium-duty industrial loads; Dual-mode cooling compatibility for flexible deployment in different thermal environments; Real-time thermal, overcurrent and overvoltage protection to safeguard power semiconductors and extend service life; Seamless integration with ACS6000 master controllers for centralized diagnostics and local monitoring; Plug-and-play modular design enabling quick replacement and system scalability; Low-loss power conversion to reduce energy consumption and operational costs for end-users.

Application Scenarios

The S-073M 3BHB009884R0014 excels in 7 MV standard-impulse motor control across general industrial sectors: Metallurgy for rolling mill auxiliary drives and material handling conveyor motor control; Power generation for boiler feed pump auxiliary units and cooling tower fan motor drives; Mining for medium-sized belt conveyor and feeder motor systems, optimizing energy efficiency in surface mine operations; Petrochemical refining for low-power pump and fan drives in storage and transportation units; Pulp & paper for pulp mixer and paper machine auxiliary section drives; General manufacturing for medium-voltage motor drives requiring stable operation and cost-effective maintenance.

Technical Specifications

• Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
• Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
• Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
• Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
• Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
