Brief Product Description

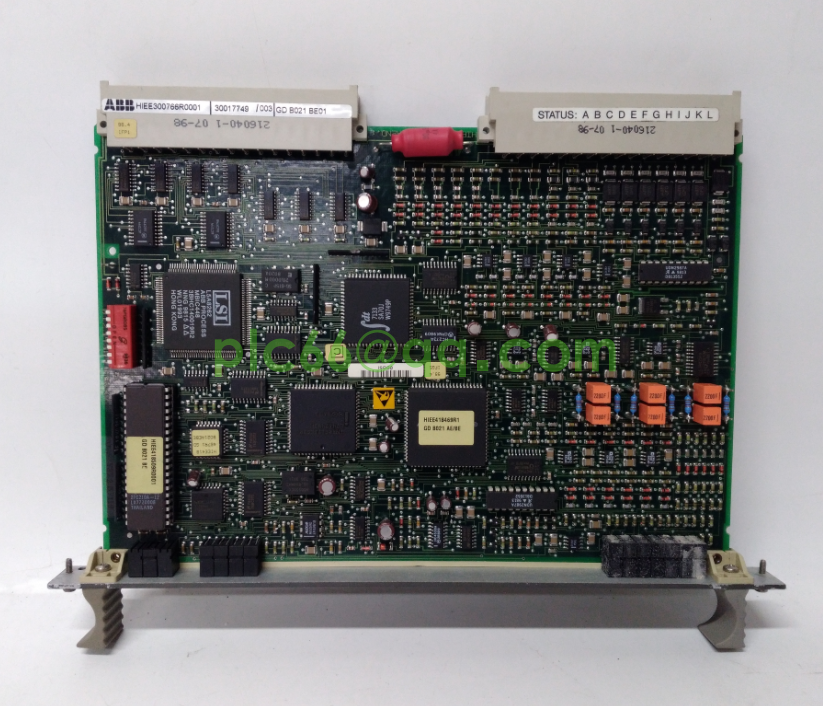

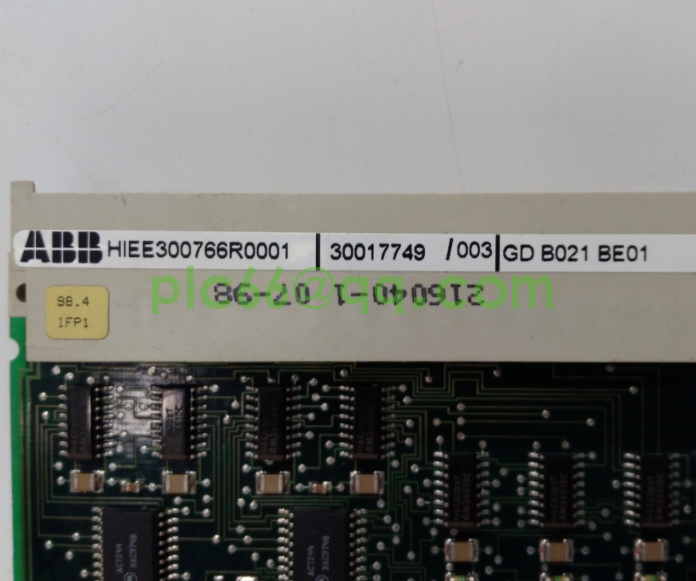

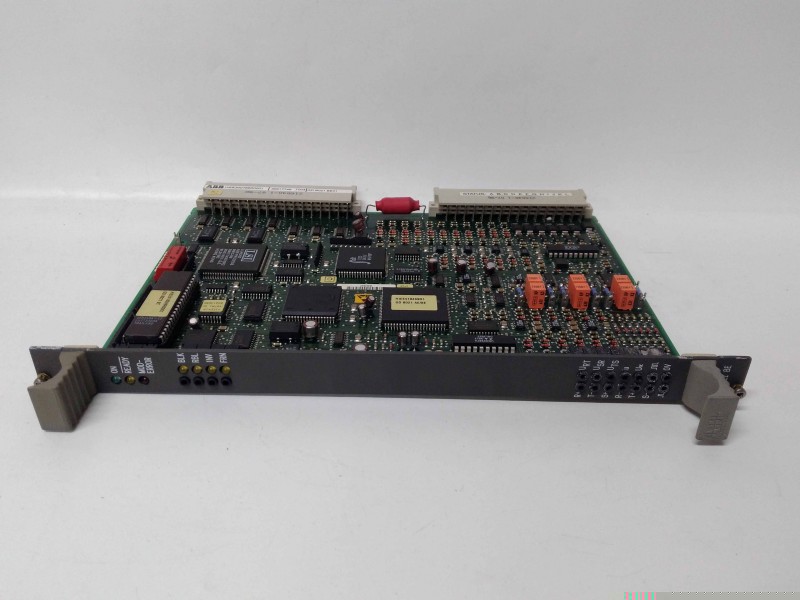

GDB021BE01, part number HIEE300766R0001, is a dedicated gate drive control board manufactured by ABB, designed for high‑power semiconductor power conversion units. This printed circuit board delivers isolated trigger signals to power switching devices, providing precise gate control, signal isolation and real‑time fault monitoring functions. It processes control commands from the main controller and converts them into drive pulses for power semiconductors. Built‑in short‑circuit protection and status feedback circuits enhance system safety under heavy‑duty operating conditions. Optimized for installation inside power cabinets, it offers reliable performance in high‑voltage and high‑EMI industrial environments. As an end‑of‑life critical power spare part, it is supplied as fully‑tested surplus and refurbished units for maintenance and retrofit of existing ABB power conversion equipment.

Core Product Functions

• Generate isolated gate trigger pulses to control turn‑on and turn‑off of power semiconductor components
• Receive control commands from main control unit and convert into drive‑level signals for power devices
• Provide galvanic isolation between low‑voltage control circuit and high‑voltage power circuit
• Real‑time hardware detection for short‑circuit, over‑current and abnormal working status of power devices
• Transmit fault feedback signals back to master controller for system‑level protection response
• Suppress voltage spikes and optimize switching timing to reduce power device switching losses
• On‑board status indicators for local visual diagnosis of drive board working and fault conditions
• Stable driving performance under continuous heavy‑load operation for industrial power conversion equipment

• Standard onboard connector interfaces for quick connection with control board and power unit assemblies

Application Scenarios

• ABB high‑power medium‑voltage drive and power conversion system power unit assemblies
• Industrial large‑capacity rectifier and inverter cabinets for metallurgy and mining industry
• Power plant auxiliary variable‑speed drives and static excitation control equipment
• Petrochemical industry heavy‑duty motor drive and energy‑saving conversion devices
• Cement plant medium‑voltage variable‑frequency drive power cabinet internal control assemblies

• Spare replacement gate drive board for maintenance, troubleshooting and upgrade of legacy ABB power racks

FAQ (Frequently Asked Questions)

• Q: Power unit reports drive fault after replacing GDB021BE01 board?
  A: Check connector plug‑in status, wiring harness integrity, matching power semiconductor device, and main controller parameter configuration.
• Q: Equipment trips frequently with over‑current protection during operation?
  A: Inspect gate drive signal integrity, board component aging, power device damage or interference from high‑voltage surges.
• Q: Can ABB GDB021BE01 HIEE300766R0001 be replaced under energized cabinet condition?
  A: Hot replacement is strictly prohibited. Cut off high‑voltage power supply and fully discharge DC bus capacitors before board replacement, comply with lockout‑tagout safety procedures.
• Q: Can this gate drive board adapt to other brands of power conversion devices?
  A: It is specially matched for designated ABB power units. Signal timing, interface definition and protection logic cannot adapt to third‑party hardware.
• Q: Is ABB GDB021BE01 HIEE300766R0001 available for brand‑new power conversion projects?
  A: This legacy gate drive board has reached end‑of‑life. Only surplus and fully‑tested refurbished units are provided for existing‑site maintenance work.
