Brief Product Description

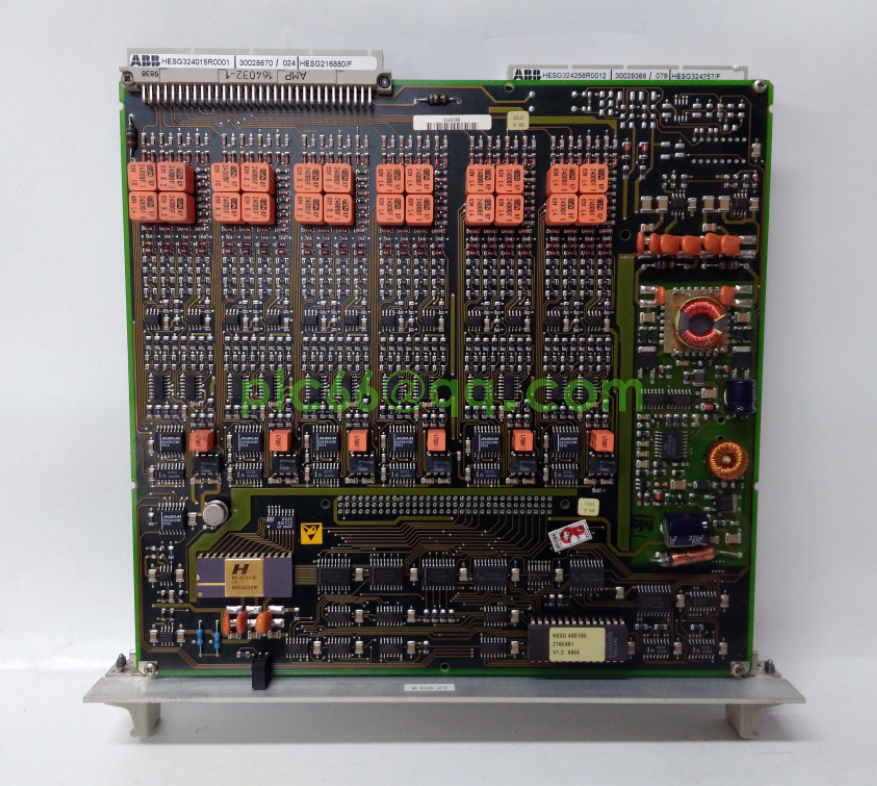

216EA61b, part number HESG324015R1, is a rack‑mounted analogue input processor unit for ABB REG216 / Procontrol generator and transformer protection systems. It receives conditioned analogue signals from 216GW61 transformer modules, performs high‑precision A/D conversion and pre‑processing, and transmits digitized measurement data over the B448C parallel bus to the main protection CPU. Equipped with on‑board microprocessor, EPROM and dual‑port memory, this module delivers fast sampling for current and voltage signals required for power system protection algorithms. Built‑in self‑diagnostics and front‑panel LED indicators support on‑site troubleshooting, and it acts as an essential spare component for maintenance and retrofit of legacy power plant protection installations.

Core Product Functions

• High‑resolution analogue‑to‑digital conversion for power‑system voltage and current measurement signals
• Accept scaled analogue inputs from 216GW61 input transformer modules for generator‑protection sampling
• On‑board microprocessor executes signal pre‑processing, filtering and data formatting tasks
• High‑speed data exchange with system controller via B448C parallel bus and dual‑port memory
• EPROM stores firmware; EEPROM holds module‑specific calibration and configuration parameters
• Continuous hardware self‑diagnosis to detect internal circuit faults and signal‑path anomalies
• Front‑panel LED indicators for module operational status and fault condition visualisation
• Provide high‑quality sampled data for protection functions including overcurrent, differential and earth‑fault protection

• Galvanic isolation design improves immunity against heavy electromagnetic interference in substation environments

Application Scenarios

• ABB REG216 and Procontrol generator‑protection system rack assemblies in thermal power plants
• Power‑plant generator, main‑transformer and unit‑auxiliary relay‑protection cabinets
• Substation automation panels for large‑scale generator sets and power‑transmission equipment
• Petrochemical and metallurgical captive power‑plant protection and control systems
• Combined‑cycle power‑unit protection installations requiring high‑speed analogue signal acquisition

• Spare replacement processor module for maintenance, expansion and upgrade of existing legacy REG216 installations

FAQ (Frequently Asked Questions)

• Q: Protection system reports abnormal measured values or missing sampled data?
  A: Check 216GW61 front‑end transformer modules, backplane bus connection, rack power supply quality, firmware version compatibility and hardware aging.
• Q: Module fault LED is active during normal system operation?
  A: Inspect bus termination settings, EPROM firmware integrity, dual‑port‑memory failure or damage induced by substation surge voltages.
• Q: Can 216EA61b HESG324015R1 be hot‑swapped while protection rack remains energized?
  A: Hot‑swap is not permitted. De‑energize the whole rack and strictly follow power‑station safety procedures before replacement to avoid protection mis‑operation.
• Q: Can this analogue processor unit run on other ABB platforms or third‑party protection devices?
  A: It is exclusively built for REG216 / Procontrol architecture; B448C bus protocol and mechanical form factor do not support cross‑platform usage.
• Q: Is ABB 216EA61b HESG324015R1 available for brand‑new power‑plant projects?
  A: This legacy analogue‑input processor has reached end‑of‑life. Only surplus and fully‑tested refurbished units are supplied for existing‑site maintenance work.
