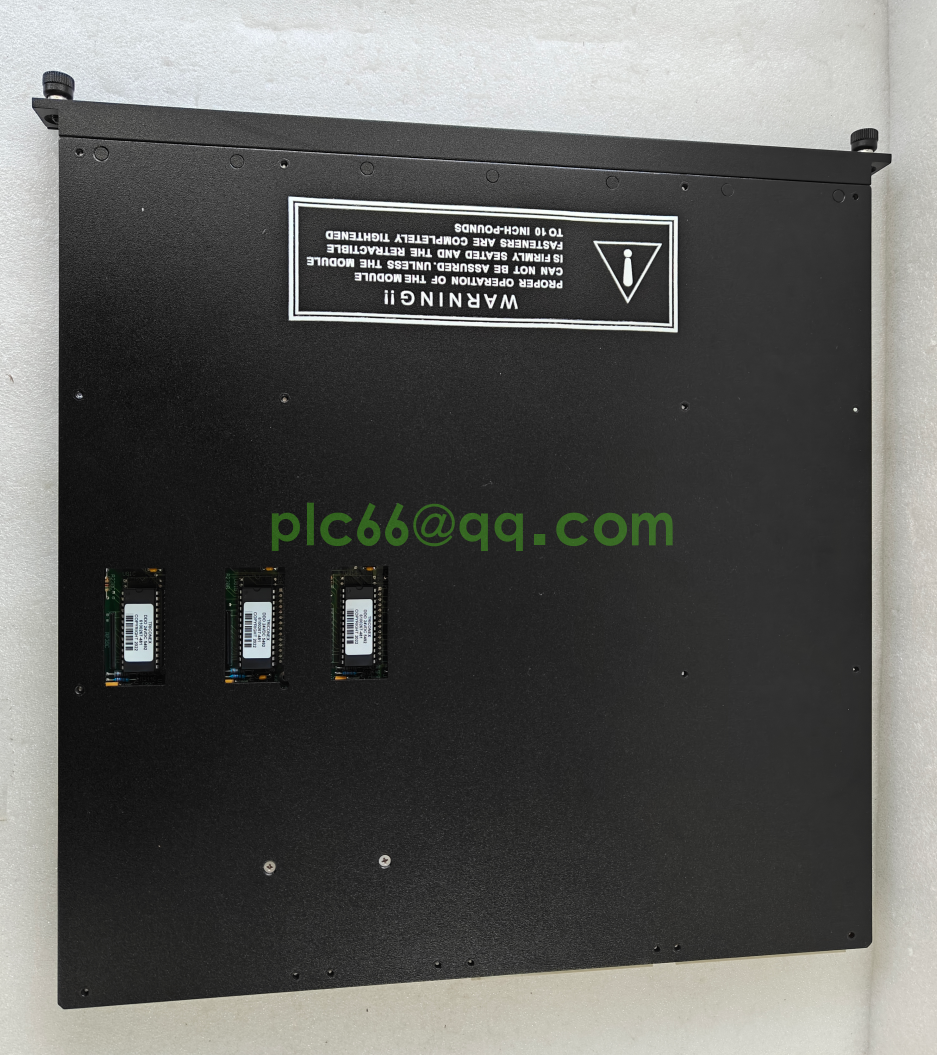

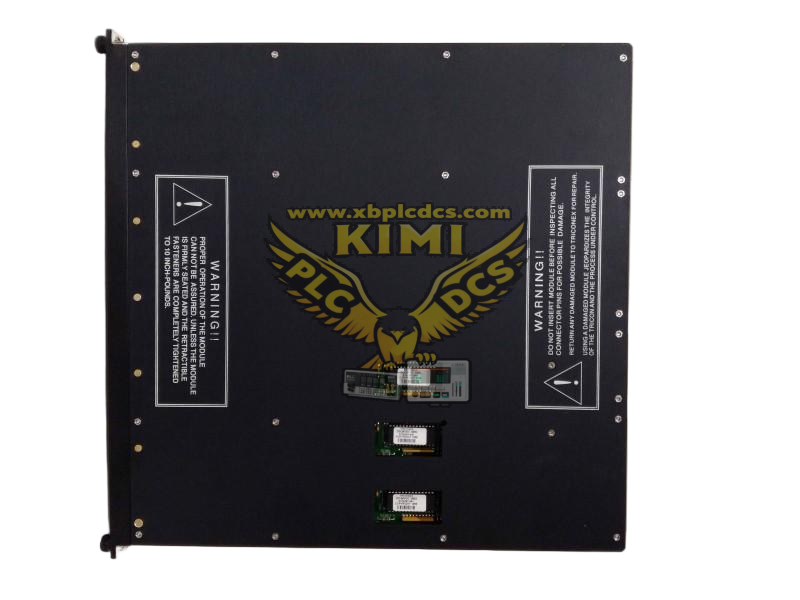

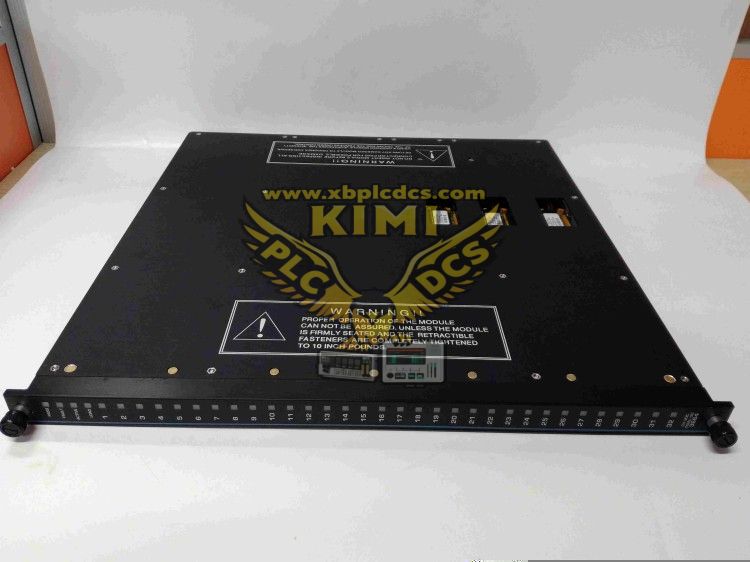

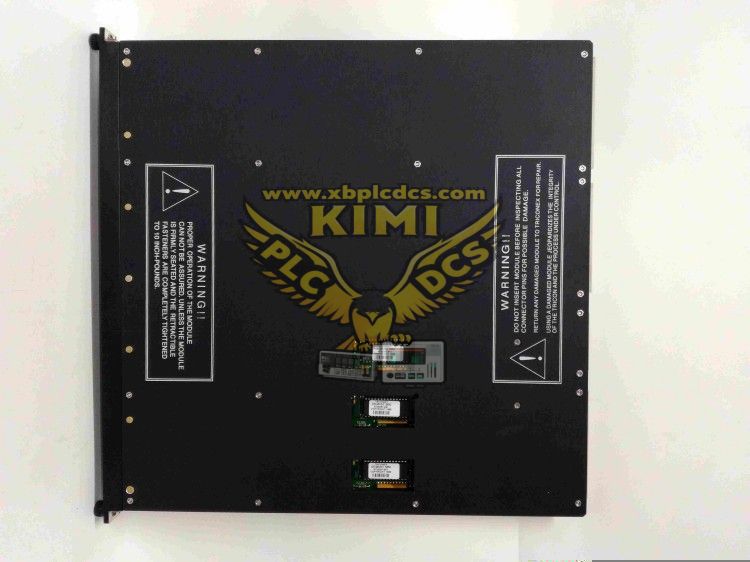

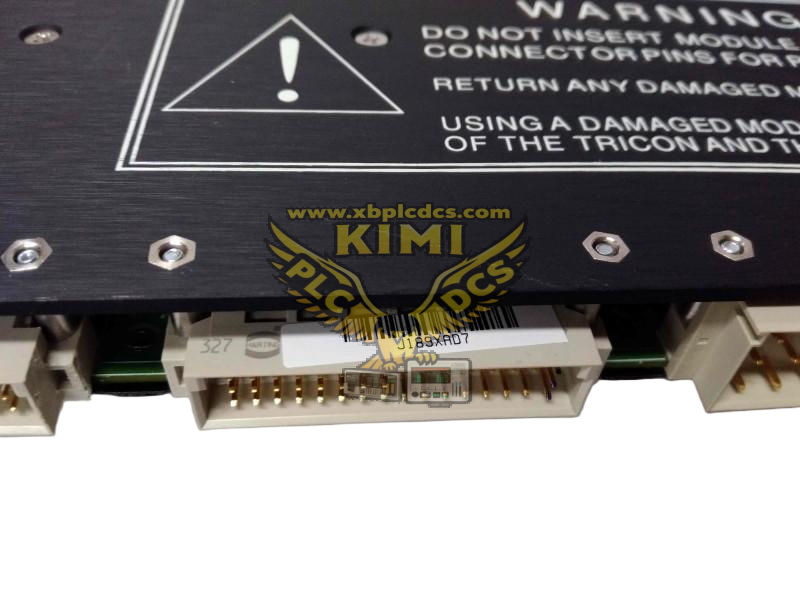

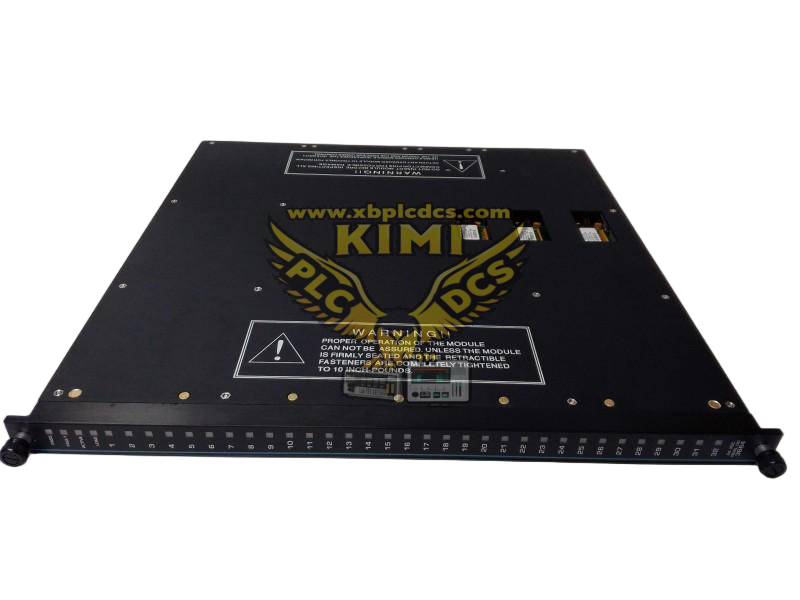

The TRICONEX DO3664 (model 3664) is a SIL3-certified safety digital output module designed for Tricon triple modular redundant (TMR) safety instrumented systems (SIS) developed by Schneider Electric Triconex. Equipped with 32 commoned 24VDC digital output channels, it adopts patented three-channel independent circuit architecture with 2-out-of-3 voting logic to eliminate single-point failure risks. The module supports a 16–30 VDC operating voltage range, with each channel rated for 2A continuous output current and 10A 10ms surge current, and provides minimum 1500VDC galvanic isolation between field circuits and the system backplane. It receives safety interlock and shutdown commands from the Tricon main processor, drives on-site safety actuators, and runs full-loop voltage feedback diagnostics for every output point to detect hidden circuit faults. With dark blue mechanical keying to prevent misplugging, conformal coated circuit board and hot-spare replacement capability, it operates reliably in high-interference, high-dust industrial control cabinets and fully complies with IEC 61508 and IEC 61511 process safety standards.

• 32-channel 24VDC safety digital output, supporting solenoid valves, safety relays, shutdown contactors and alarm indicator lights as field loads
• TMR triple redundant circuit with hardware 2-out-of-3 voting, ensuring valid output execution even if one internal channel malfunctions
• Built-in voltage loopback self-diagnosis for each channel to detect stuck-ON, stuck-OFF, open circuit, short circuit and blown fuse faults in real time
• 1500VDC isolation between field wiring and control logic bus to suppress common-mode noise, lightning surge and ground loop interference
• Support hot-spare online replacement under redundant rack configuration without triggering safety system trip

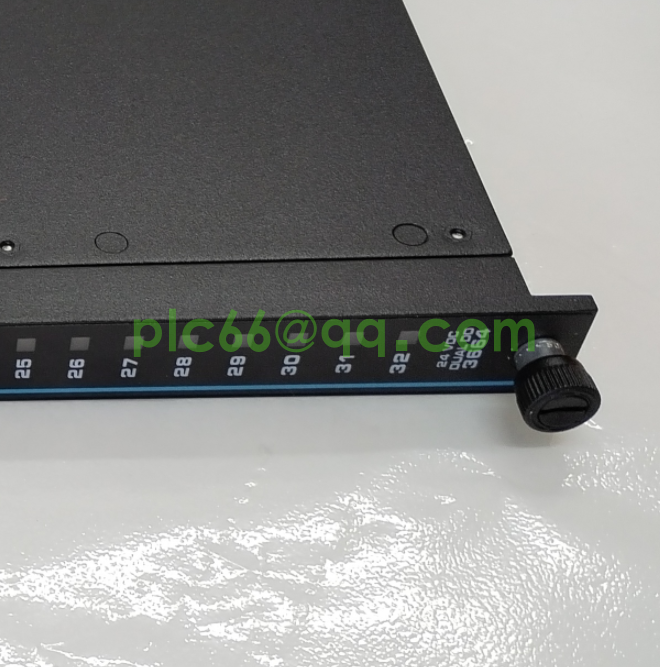

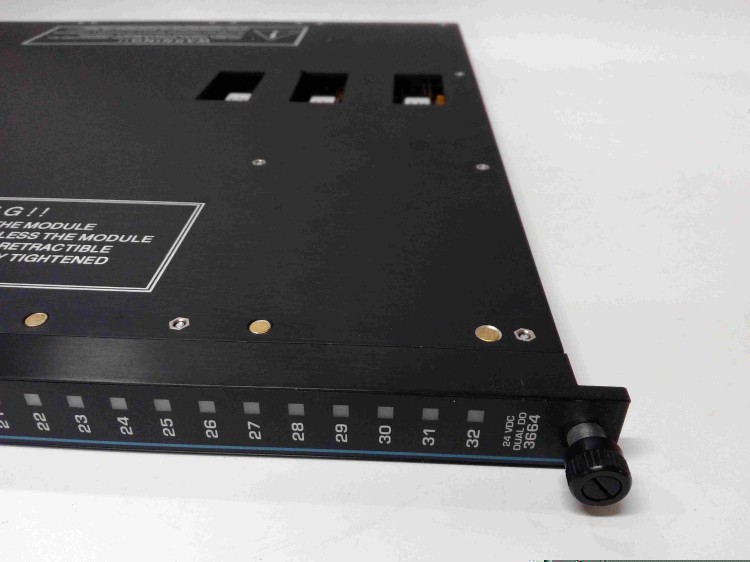

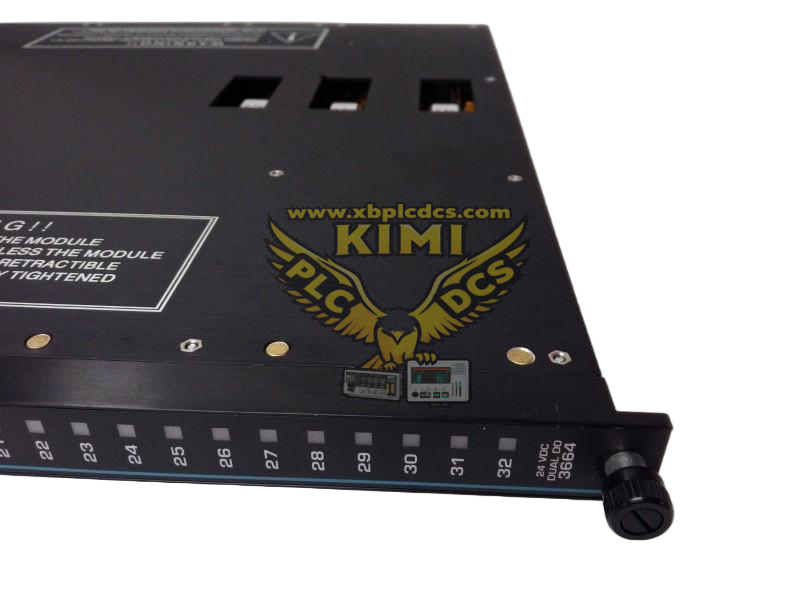

• Front panel LED indicators showing module PASS/FAULT status, channel ON/OFF state and load fuse abnormal alarms for quick field troubleshooting
• Overcurrent, reverse polarity and transient surge protection for all output channels to avoid module damage caused by field wiring errors
• Deterministic high-speed backplane communication with Tricon CPU, output response time controlled within 10ms for fast safety shutdown actions
• Conformal coating treatment adapts to G3 industrial corrosive environments, resisting oil mist, moisture and dust in power and chemical plants

• Mechanical color keying and slot locking design to avoid installation of mismatched I/O modules and prevent system bus conflicts

• Oil & Gas Industry: Emergency Shutdown (ESD) system, fire & gas (F&G) protection on refineries, offshore platforms and natural gas pipeline stations
• Thermal & Combined Cycle Power Plants: Turbine protection, boiler burner management system (BMS), generator safety interlock and trip control
• Petrochemical & Chemical Plants: High-pressure reactor safety interlock, toxic medium pipeline cut-off valve drive and overpressure protection
• Fertilizer & Hydrogen Production Facilities: Ammonia synthesis unit shutdown logic, hydrogen storage tank safety valve control
• Mining Metallurgy: Furnace emergency cut-off, high-temperature equipment safety interlock and flue gas protection systems
• Pharmaceutical Fine Chemical Factories: Explosion-proof production line safety interlock and hazardous material processing protection
• Automation Retrofit Projects: Replacement digital output card for aging Tricon SIS racks during safety system upgrading and maintenance

• Q: Can DO3664 drive AC 220V actuators directly?
  A: No, this module only provides 24VDC output. External intermediate relays must be used to convert signals for AC load control.
• Q: Is hot swapping allowed for single non-redundant Tricon rack configuration?
  A: Hot swap is forbidden for single-module non-redundant racks; power down the entire chassis before disassembly to prevent accidental safety trips. Hot replacement is only supported under dual redundant I/O architecture.
• Q: Why does the LOAD/FUSE alarm light keep flashing for individual output channels?
  A: Common causes include short-circuited field wiring, blown channel fuse, load current exceeding 2A continuous rating, loose terminal wiring or damaged solenoid coil.
• Q: Does DO3664 satisfy SIL3 safety integrity level requirements?
  A: Yes, the module carries IEC 61508 SIL3 certification when deployed within complete Tricon TMR redundant safety architecture, meeting full process safety loop requirements.
• Q: What is the maximum allowable surge current per output point?
  A: Each channel supports 10A surge current within 10ms; long-term continuous load must not exceed 2A to avoid permanent circuit damage.
• Q: How to solve frequent stuck-OFF fault diagnosis alarms without field load faults?
  A: Check whether the field wiring has excessive leakage current (max allowed leakage 2mA), verify terminal grounding integrity, and inspect for damaged channel isolation circuits inside the module.
