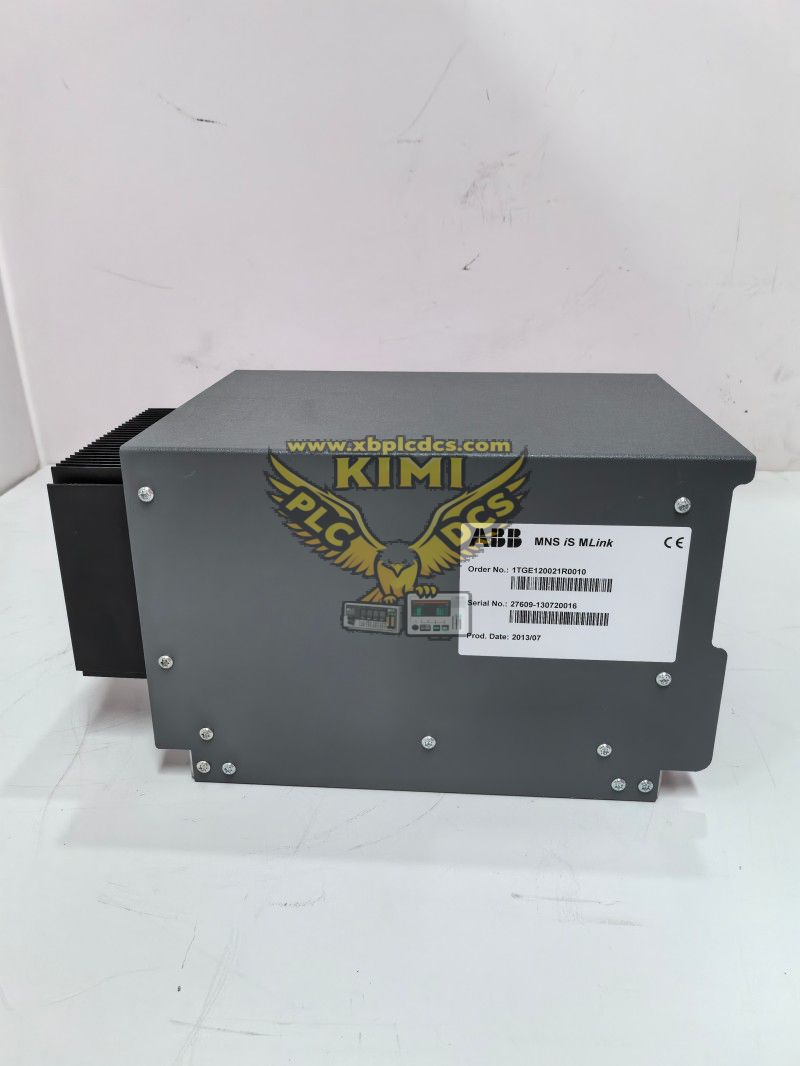

Intermediate Document - 1TGE120021R0010
Document Reference Code: 1TGE120021R0010
Document Status: Intermediate (Draft Revision 0)
Product Type: PLC (Programmable Logic Controller) Module
Applicable System: ABB AC 800M Control System
Document Purpose:
This intermediate document defines the preliminary design and functional specifications for the 1TGE120021R0010 PLC module. It consolidates the technical requirements from system design phase and provides a baseline for subsequent detailed design, testing, and final documentation.
Core Technical Requirements:
- Power Supply: 24V DC ±10%, Consumption ≤ 5W
- Communication Interface: Profibus DP V1, Transmission Rate up to 12 Mbps
- I/O Configuration: 16 Digital Inputs (24V DC), 8 Digital Outputs (Relay)
- Operating Environment: Temperature -10°C to +60°C, Humidity 5% to 95% (non-condensing)
- MTBF (Mean Time Between Failures): ≥ 100,000 hours (at 25°C)
Notes for Subsequent Development:
This document is subject to revision based on prototype testing results. All technical parameters shall be verified and finalized in the final product specification document (revision 1 and above).
