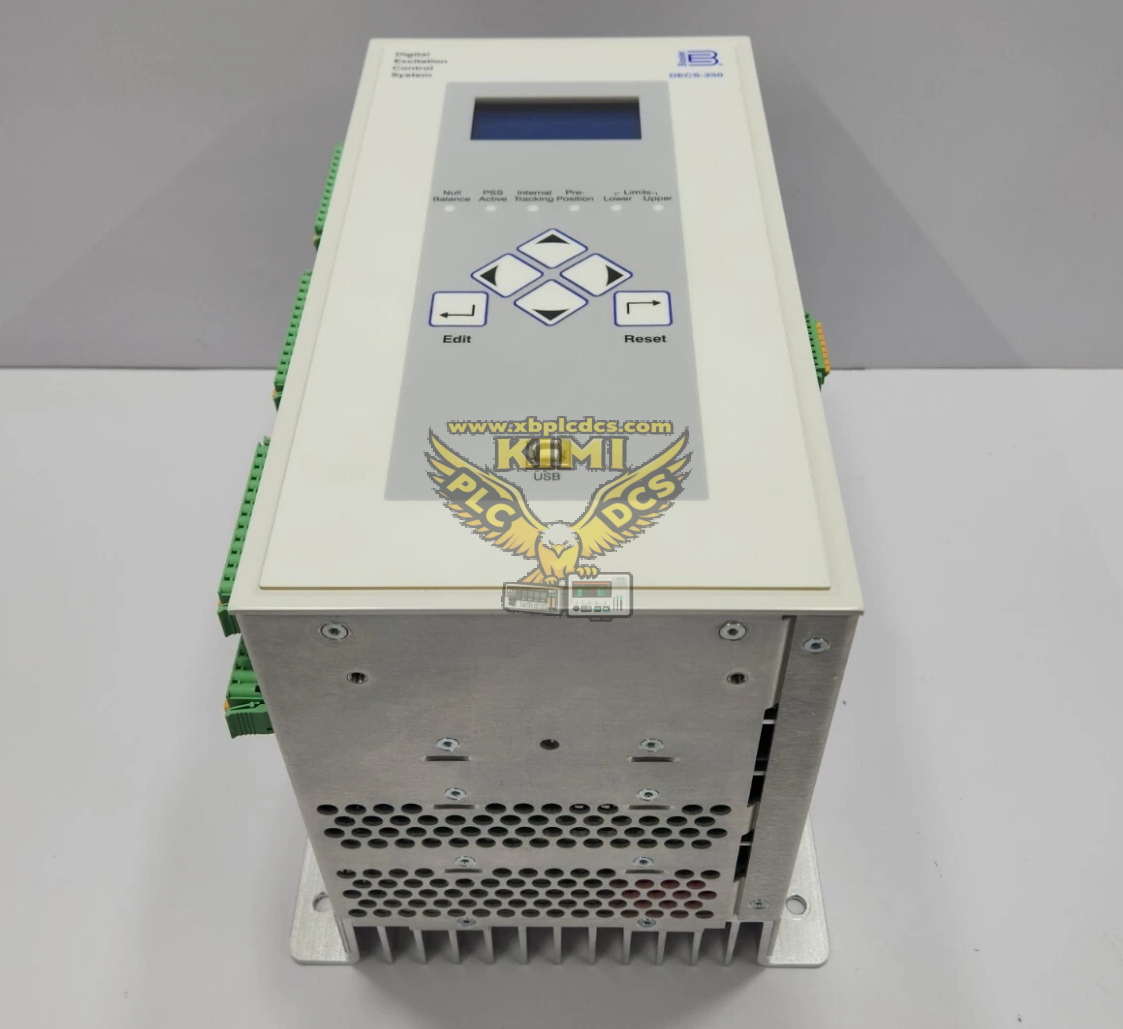

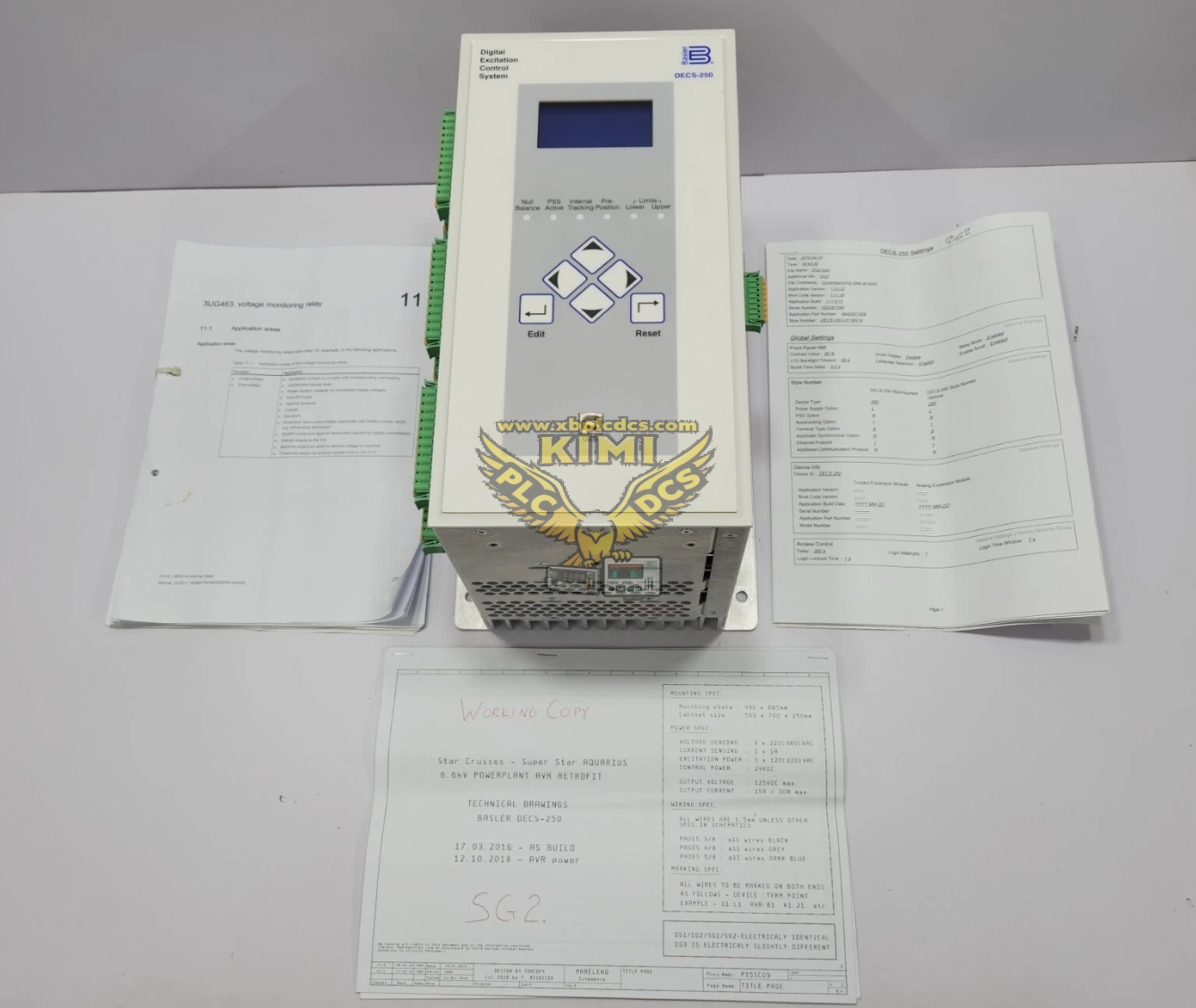

Basler Electric DECS-250-CN1CN1N - Intermediate Technical Document
Document Type: Intermediate Reference | Revision: INT-01 | Date: 2025-12-24
Internal Engineering Use Only | Not for Customer Distribution or Quoting
Core Product Specifications
| Product Type | Digital Excitation Control System (Generator Voltage Regulator) |
| Model Configuration (CN1CN1N) | CN1: Standard communication (Modbus RTU), CN1: Analog I/O package, N: No optional accessories |
| Input Voltage Range | AC: 90-130V / 180-260V (50/60Hz); DC: 100-300V (auxiliary power) |
| Output Excitation | 0-10A DC (continuous), 0-20A DC (intermittent); Field voltage up to 300V DC |
| Voltage Regulation Accuracy | ±0.25% of setpoint (steady-state); Response time < 100ms (transient) |
| Communication Interfaces | RS-485 (Modbus RTU), optional Ethernet (Modbus TCP/IP); Serial port for configuration |
| Environmental Ratings | Operating temp: -20°C to +60°C; Protection class: NEMA 4X / IP66 (enclosure) |
Application & Key Features
- Primary Applications: Small to medium industrial generators (500kW to 10MW), standby power systems, cogeneration plants
- Key Features: Automatic voltage regulation (AVR), overexcitation protection, under/over voltage trip, power factor control
- Configuration: Local HMI with pushbuttons & LCD display; PC-based configuration tool (Basler EZ-Configure)
Compliance (Preliminary): UL 508, CE (EMC 2014/30/EU), IEEE 421.5-2016
Intermediate Document Disclaimer
This is an intermediate technical reference for Basler Electric DECS-250-CN1CN1N. All specifications, including configuration codes and electrical ratings, are preliminary and subject to validation by Basler Electric’s Power Systems division.
Notice: This document shall not be used for procurement, final system design, or customer communication. For official validated datasheets and installation guides, refer to Basler Electric’s Product Documentation Center (Doc ID: DECS-250-001). Unauthorized use may result in incorrect system integration and voided product warranty.
Basler Electric © 2025 | All Rights Reserved
Document ID: BASLER-DECS250-INT-20251224 | Internal Use Only
```
