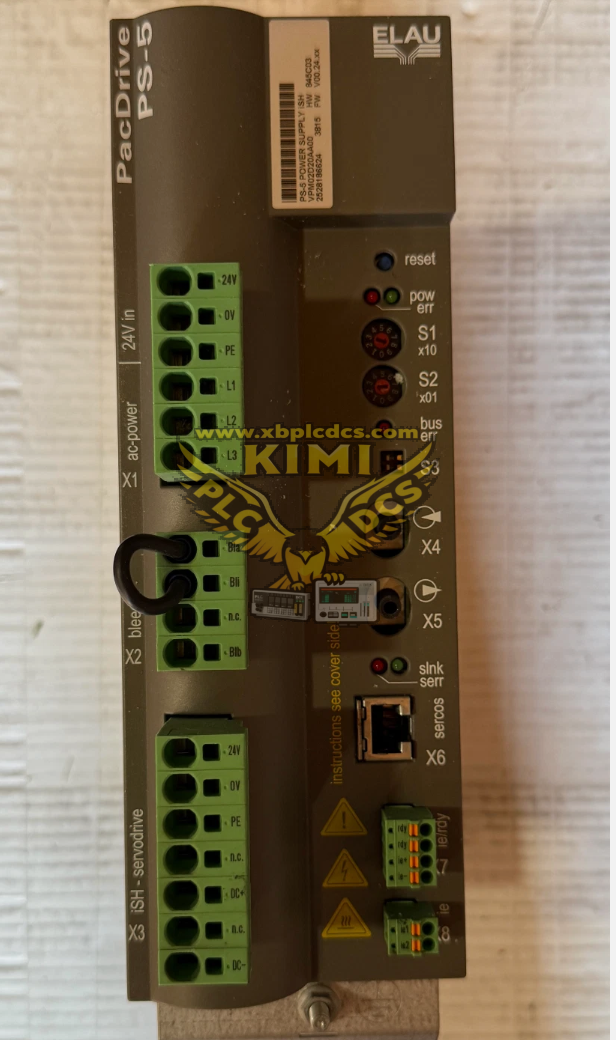

Schneider‑ELAU VPM02D20AA00 (PS‑5/10/20/400/00, 13130265) Product Description
The VPM02D20AA00, technical designation PS‑5/10/20/400/00, ELAU part‑no 13130265, is the central system power‑supply module for the PacDrive M iSH distributed servo‑drive platform, manufactured in Germany. It converts 3‑phase AC mains input into 680 VDC intermediate‑circuit bus voltage and regulated 24 VDC auxiliary supply for connected iSH intelligent servo axes. It also hosts the SERCOS real‑time motion‑bus master controller, distributing power and high‑speed motion commands to distributed servo nodes via hybrid system cables and DB‑5 distribution boxes. This product is end‑of‑life, original production discontinued, available only as surplus or refurbished spare stock. Base firmware pre‑loaded; drive‑axis topology‑and‑motion‑parameters must be downloaded via PacDrive engineering software before commissioning.
Product Features
- System power‑supply for PacDrive M iSH servo system; continuous output current rating 20 A, DC‑link voltage 680 VDC; integrates SERCOS‑III motion‑bus master functionality.
- Combined power‑and‑communication gateway: supplies DC‑bus power, 24 V auxiliary power and real‑time motion control commands over one hybrid cable to distributed iSH servo modules.
- Multi‑level hardware diagnostics: monitors mains input, DC‑link voltage, output overload, over‑temperature, bus‑link health; status LED indicators for fault localisation.
- Supports multi‑axis synchronised motion control; designed for high‑speed packaging‑machine multi‑servo coordination applications.
- Compact cabinet‑mount format; wide‑range 3‑phase AC input; built‑in EMC filtering conforming to industrial machine‑directive standards; IP20 protection grade.
- VPM02D20AA00 is a fixed hardware variant; cannot directly substitute other PS‑5 family power‑supply variants; must verify firmware version and axis‑count compatibility before replacement.
- Pre‑installed base firmware; complete servo‑axis configuration, motion‑profile parameters and SERCOS‑bus topology settings must be downloaded by PacDrive engineering tool before machine commissioning.
Application Scenarios
- High‑speed packaging machinery: cartoners, form‑fill‑seal machines with PacDrive M distributed multi‑servo systems.
- Packaging‑and‑printing‑industry production‑lines requiring high‑precision multi‑axis synchronous motion control.
- Food‑and‑beverage processing automated production‑equipment spare‑part‑replacement for existing ELAU‑PacDrive installations.
- Retrofit‑maintenance projects for aging PacDrive M control racks in packaging‑machine OEM‑end‑user plants.
- Special‑purpose industrial automation machinery using iSH distributed servo‑drive architecture.
Frequently Asked Questions
A1: VPM02D20AA00 = PS‑5/10/20/400/00 = ELAU material‑number 13130265; all reference to the exact same power‑supply hardware unit.
A2: No. Base‑firmware is resident onboard. Must download full project configuration including servo‑axis parameters, motion‑profiles and SERCOS‑bus topology. Perform power‑on‑loop‑test without mechanical load before enabling machine motion.
A3: Check hybrid power‑communication cable integrity, DB‑5 distribution‑box connection status, 3‑phase mains‑supply stability, module over‑temperature status, and downloaded project‑bus‑configuration consistency.
A4: Hot‑swap is not supported. VPM02D20AA00 supplies all connected servo‑axes with power‑and‑motion‑commands. Follow machine‑safety‑procedure; fully de‑energize main‑power before module‑replacement to prevent uncontrolled axis‑movement.
A5: Anti‑static wrist‑strap mandatory for servicing. Avoid mechanical‑shock impact. Store in dry low‑humidity environment; retain original anti‑static packaging for spare‑part preservation.
